AT89C51CC03CA-SLSUM

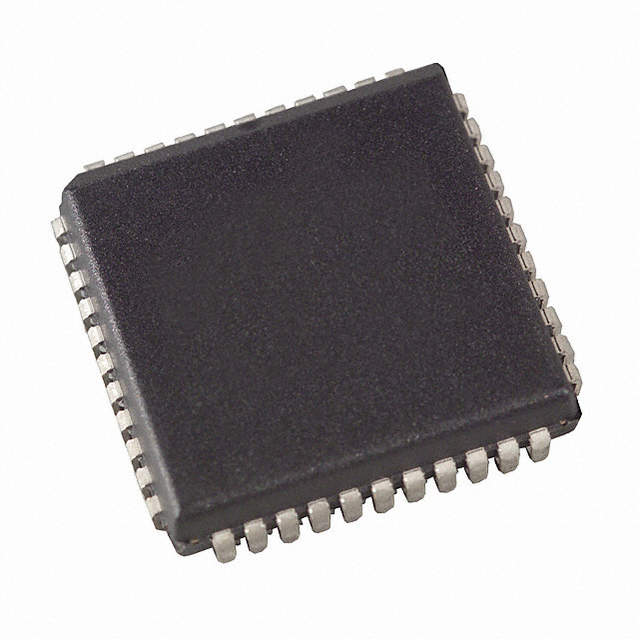

ATMEL  AT89C51CC03CA-SLSUM  微控制器, 8位, CAN 控制器, AT89C51, 60 MHz, 64 KB, 2 KB, 44 引脚, LCC

The is a 8-bit Microcontroller dedicated to CAN network applications. In X2 mode a maximum external clock rate of 20MHz reaches a 300ns cycle time. Besides the full CAN controller AT89C51CC03 provides 64kB of flash memory including In-system programming ISP, 2kB boot flash memory, 2kB EEPROM and 2048byte ERAM.

.

80C51 Core architecture

.

256byte of On-chip RAM

.

2kB of On-chip flash for bootloader

.

Integrated power monitor POR - PFD to supervise internal power supply

.

14-sources 4-level Interrupts

.

Three 16-bit timers/counters

.

Full duplex UART compatible 80C51

.

Five ports - 32 + 4 digital I/O lines

.

Five-channel 16-bit PCA

.

Double data pointer

.

21-bit Watchdog timer 7 Programmable -bits

.

10-bit resolution Analog-to-digital converter ADC with 8 multiplexed Inputs

.

Fully compliant with CAN Rev 2.0A and 2.0B

.

Optimized structure for communication management Via SFR

.

Time triggered communication

.

Autobaud and listening mode

.

Programmable automatic reply mode

.

1Mbps Maximum transfer rate at 8MHz crystal frequency in X2 mode

.

Readable error counters

.

Programmable link to on-chip timer for time stamping and network synchronization

Primary attention is paid to the reduction of the electro-magnetic emission of AT89C51CC03.
