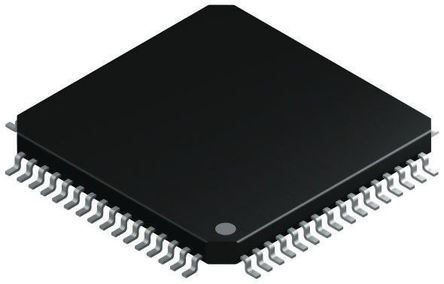

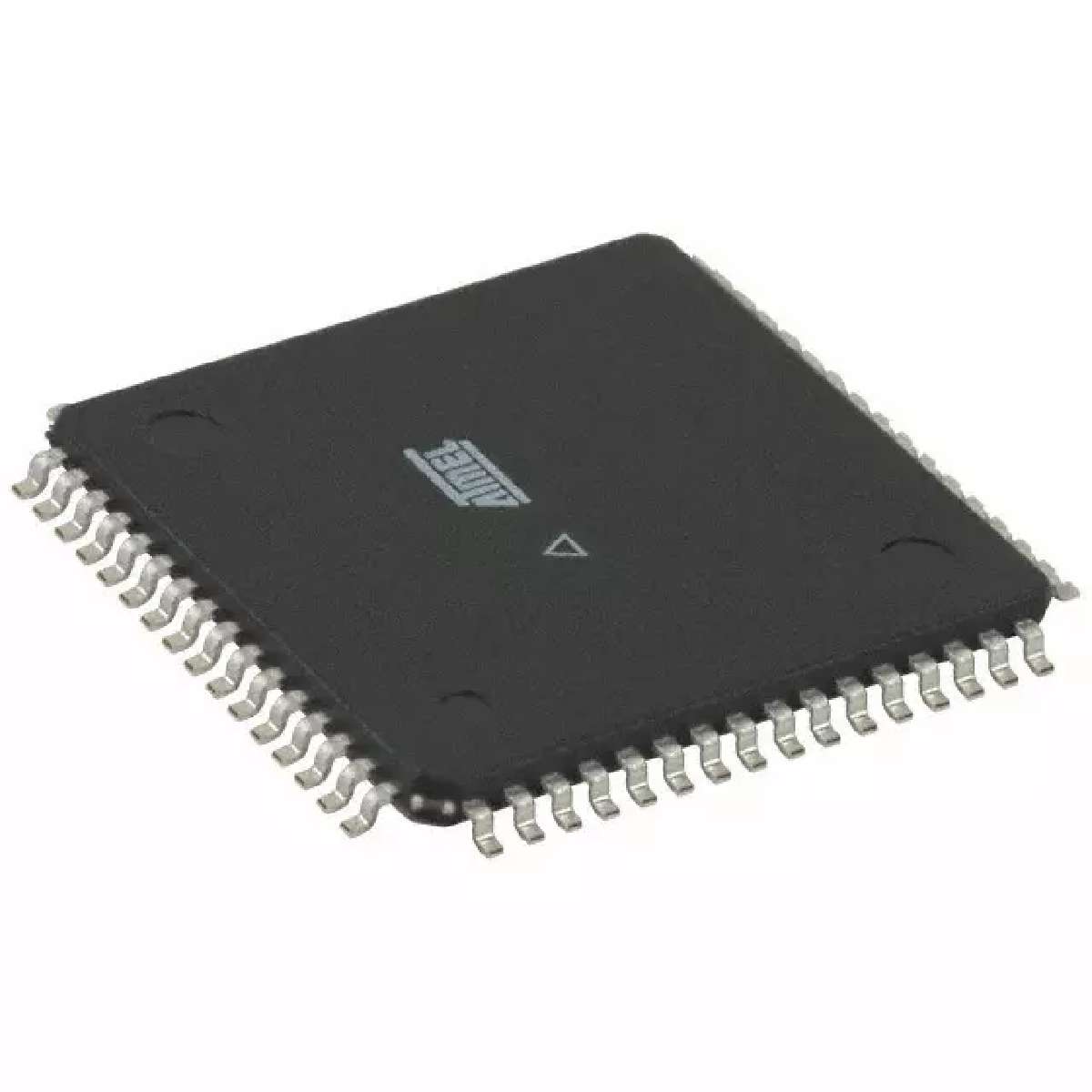

ATMEGA645-16AU

8 位 megaAVR® 微控制器，32KB 到 256KB 闪存，Atmel我们在 RS Components 提供多款来自 Atmel 的 megaAVR 8 位微控制器。 每个微控制器均基于增强型 RISC 体系结构，并具有 QTouch 库支持。 所有微控制器类型具有不同 Kb 的系统内可编程内存、EEPROM 和 SRAM 以及不同引脚和封装类型。 **megaAVR 8 位微控制器类型** •ATmega32 •ATmega64 •ATmega128 •ATmega324 •ATmega325 •ATmega406 •ATmega640 •ATmega644 •ATmega645 •ATmega1280 •ATmega1281 •ATmega1284 •ATmega2560 •ATmega2561 •ATmega3250 •ATmega6450### AVR 微控制器，Atmel

The is a 8-bit high-performance low-power AVR RISC-based Microcontroller combines 64kB ISP flash memory, 4kB SRAM, 2kB EEPROM, 53 programmable I/O lines, an 8-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device achieves throughput of 16 MIPS at 16MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed. The Atmel® AVR® core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit ALU, allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

.

Advanced RISC architecture - On-chip 2-cycle multiplier

.

High endurance, non-volatile memory segments

.

QTouch® library support - QTouch® library support

.

JTAG IEEE 1149.1 compliant interface

.

Peripheral features - Real time counter with separate oscillator

.

Power-on reset POR and programmable brown-out detection

.

Internal calibrated oscillator

.

External and internal interrupt sources

.

Five sleep modes - Idle, ADC noise reduction, power-save, power-down and standby
