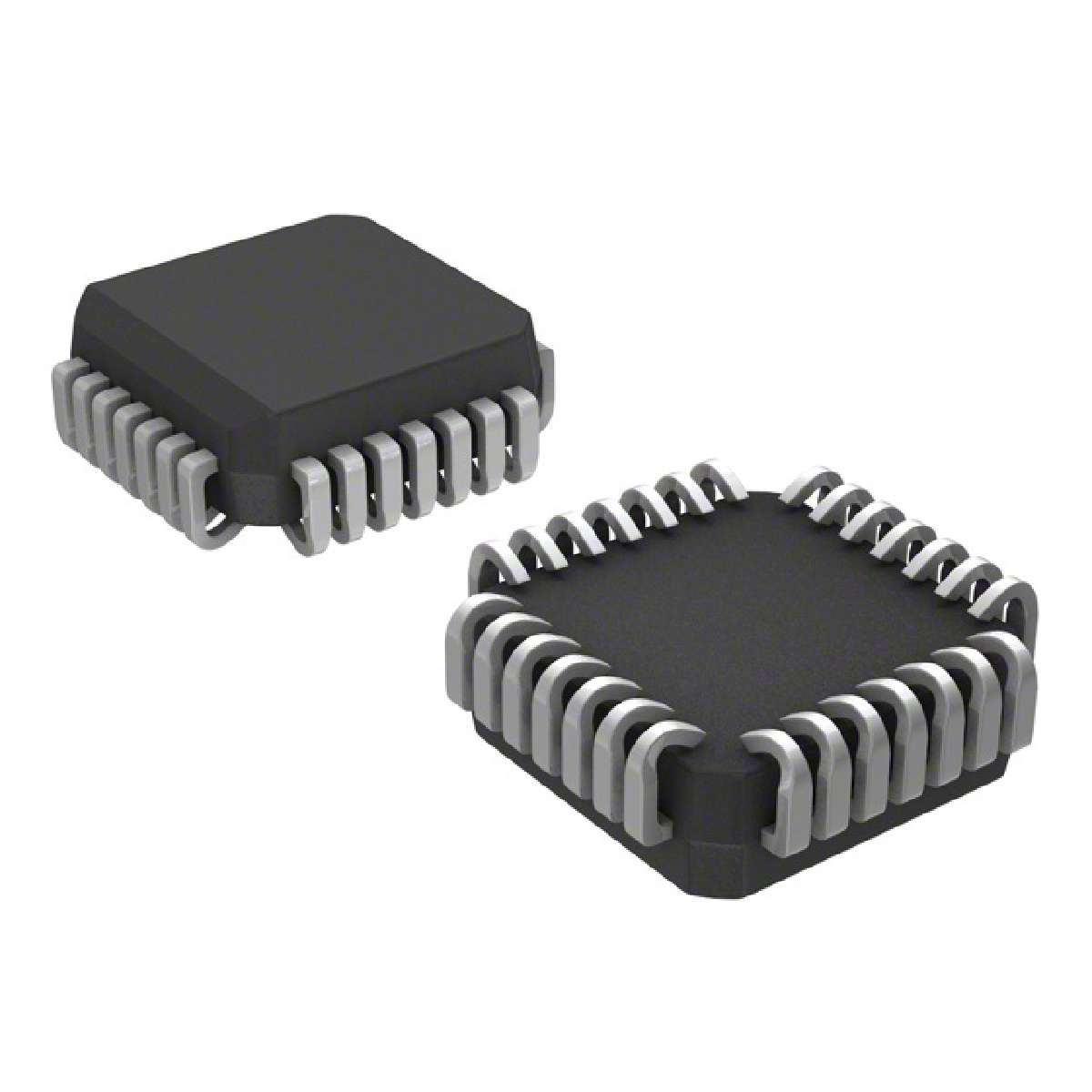

MCU 8Bit 89C 8051 CISC 16KB Flash 3.3V/5V 28Pin PLCC Stick
Description
The T89C5115 is a high performance Flash version ofthe 80C51 single chip 8-bit microcontrollers. It contains a 16-KB Flash memory blockfor program and data.
The 16-KB Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally gener ated from the standard VCC pin.
Features
• 80C51 Core Architecture
• 256 Bytes of On-chip RAM
• 256 Bytes of On-chip XRAM
• 16K Bytes of On-chip Flash Memory
– Data Retention: 10 Years at 85°C
– Erase/Write Cycle: 100K
• 2K Bytes of On-chip Flash for Bootloader
• 2K Bytes of On-chip EEPROM
– Erase/Write Cycle: 100K
• 14-sources 4-level Interrupts
• Three 16-bit Timers/Counters
• Full Duplex UART Compatible 80C51
• Maximum Crystal Frequency 40 MHz. In X2 Mode, 20 MHz CPU Core, 40 MHz
• Three or Four Ports: 16 or 20 Digital I/O Lines
• Two-channel 16-bit PCA
– PWM 8-bit
– High-speed Output
– Timer and Edge Capture
• Double Data Pointer
• 21-bit Watchdog Timer 7 Programmable bits
• A 10-bit Resolution Analog-to-Digital Converter ADC with 8 Multiplexed Inputs
• Power-saving Modes
– Idle Mode
– Power-down Mode
• Power Supply: 3 Volts to 5.5 Volts
• Temperature Range: Industrial -40°to +85°C
• Packages: SOIC28, SOIC24, PLCC28, VQFP32
频率 40 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 40 MHz
RAM大小 512 B
耗散功率 1000 mW
I/O引脚数 20
存取时间 40.0 µs
内核架构 8051
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 28
封装 PLCC-28
长度 11.51 mm
宽度 11.51 mm
高度 3.48 mm
封装 PLCC-28
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
