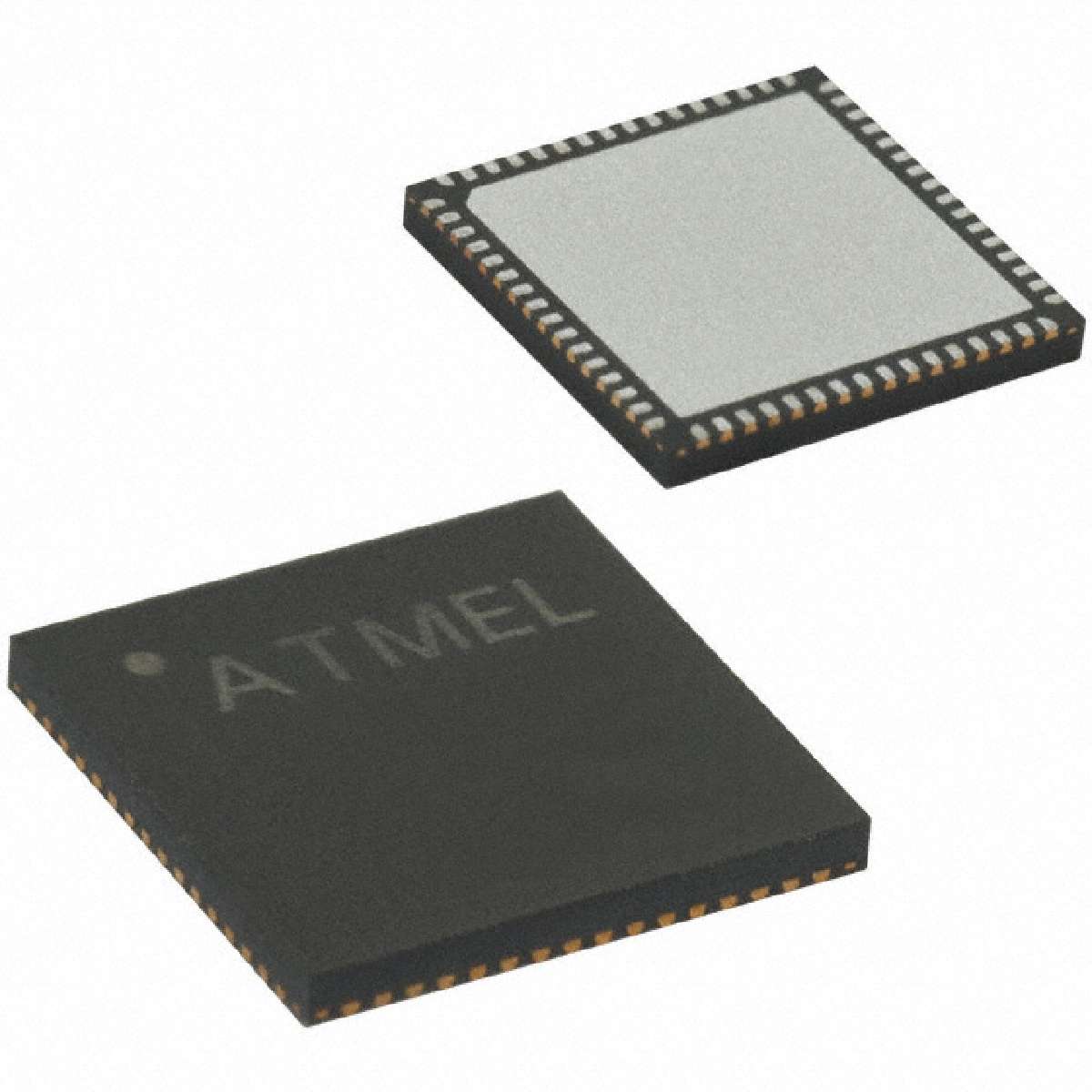

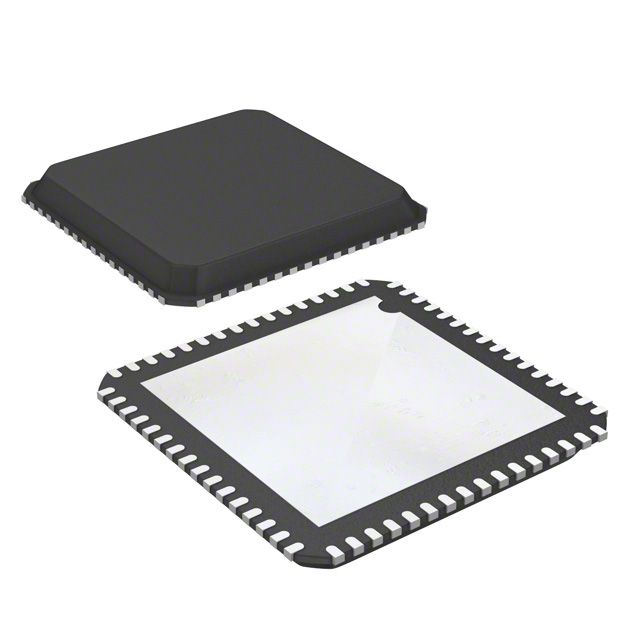

AT90CAN128-16MU

ATMEL  AT90CAN128-16MU  芯片, 微控制器, 8位, AVR, 16MHZ, VQFN-64

The is a 8-bit high-performance low-power AVR RISC-based Microcontroller combines 128kB ISP flash memory, 4kB EEPROM, 4kB SRAM, 53 general purpose I/O lines, 32 general purpose working registers, CAN controller V2.0A/V2.0B compliant, real time counter, four flexible timer/counters with compare modes and PWM, two USARTs, byte oriented Two-Wire serial interface, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG test interface IEEE 1149.1 compliant for on-chip debugging and five software selectable power saving modes. The device supports a throughput of 16 MIPS at 16MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

.

Advanced RISC architecture - On-chip 2-cycle multiplier

.

Non volatile program and data memories - Programming lock for software security

.

JTAG IEEE 1149.1 compliant interface - Extensive on-chip debug support

.

CAN controller 2.0A and 2.0B - ISO 16845 certified

.

Peripheral features - Programmable watchdog timer with on-chip oscillator

.

Power-on reset POR and programmable brown-out detection

.

Internal calibrated RC oscillator

.

8 External interrupt sources

.

5 Sleep modes - Idle, ADC noise reduction, power-save, power-down and standby

.

Software selectable clock frequency

.

Global pull-up disable

.

Industrial -40 to +85°C operating temperature
