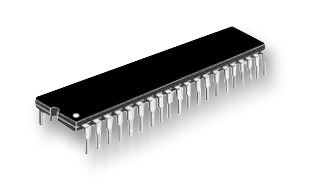

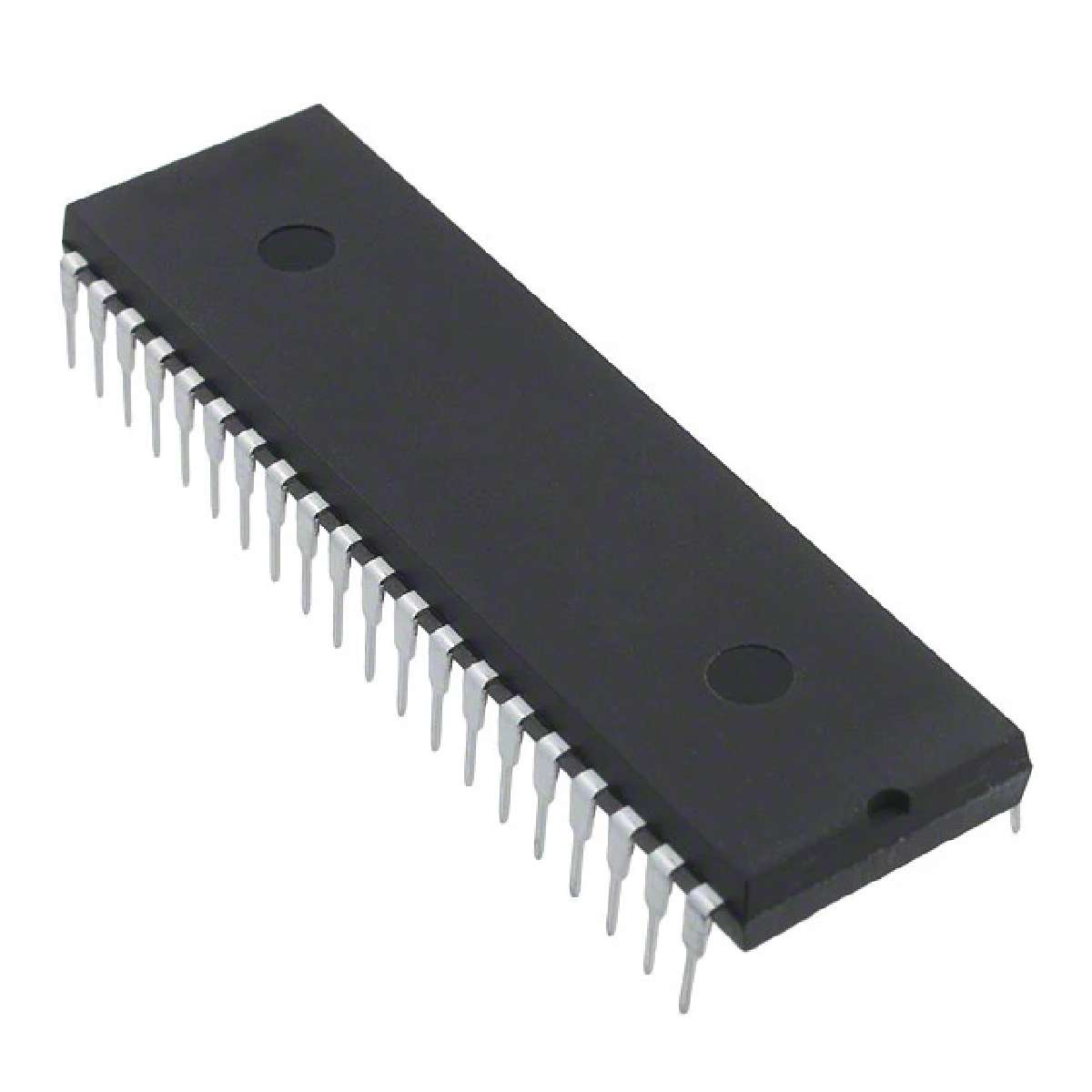

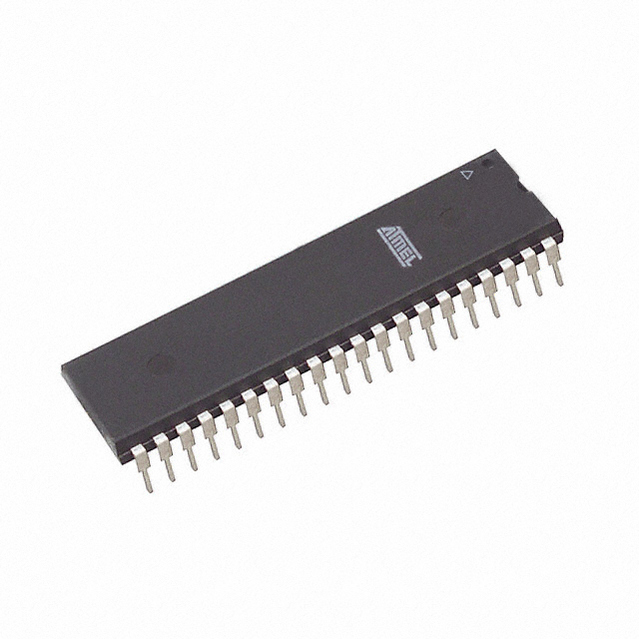

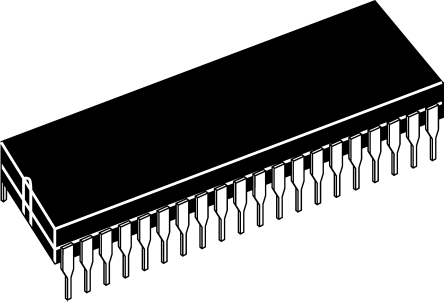

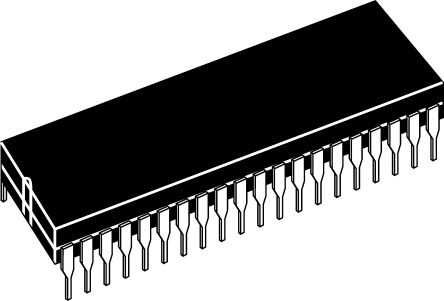

ATMEGA324P-20PU

8 位 PicoPower megaAVR 系列微控制器，Atmel此系列 megaAVR 微控制器具有 picoPower 技术 — 非常适合节能。 它们提供大量程序和数据内存，性能高达 20 MIPS。 **picoPower megaAVR 微控制器的特色和优点** •片上闪存 •SRAM •内部 EEPROM •SPI •TWI I²C •USART、USB、CAN 和 LIN 接口 •监控计时器 •精密振荡器 •GPIO 引脚 •ADC •DAC •内置温度传感器 •内部参考电压 •掉电检测器### AVR 微控制器，Atmel

The is a 8-bit high-performance picoPower AVR RISC-based Microcontroller combines 32kB ISP flash memory with read-while-write capabilities, 1kB EEPROM, 2kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, real time counter, three flexible timer/counters with compare modes and PWM, 2 USARTs, byte oriented 2-wire serial interface, 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG IEEE 1149.1 compliant interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed.

.

Advanced RISC architecture - On-chip 2-cycle multiplier

.

High endurance, non-volatile memory segments

.

JTAG IEEE 1149.1 compliant interface

.

Peripheral features - Real time counter with separate oscillator

.

Power-on reset POR and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
