8位微控制器 -MCU OTP RD/64K 40MHZ 5V
Description
Atmel TS8xC51Rx2 is a high performance CMOS ROM, OTP, EPROM and ROMless versions of the 80C51 CMOS single chip 8-bit microcontroller. The TS8xC51Rx2 retains all features of the 80C51 with extended ROM/EPROM capacity 16/32/64 Kbytes, 256 bytes of internal RAM, a 7-source , 4-level interrupt system, an on-chip oscilator and three timer/counters.
贸泽:
8位微控制器 -MCU OTP RD/64K 40MHZ 5V
艾睿:
MCU 8-bit AT87 80C51 CISC 64KB EPROM 5V 44-Pin PLCC Stick
电源电压DC 5.00 V, 5.50 V max
时钟频率 40.0 MHz, 40.0 MHz max
RAM大小 1K x 8
I/O引脚数 32
存取时间 40.0 µs
内核架构 8051
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 44

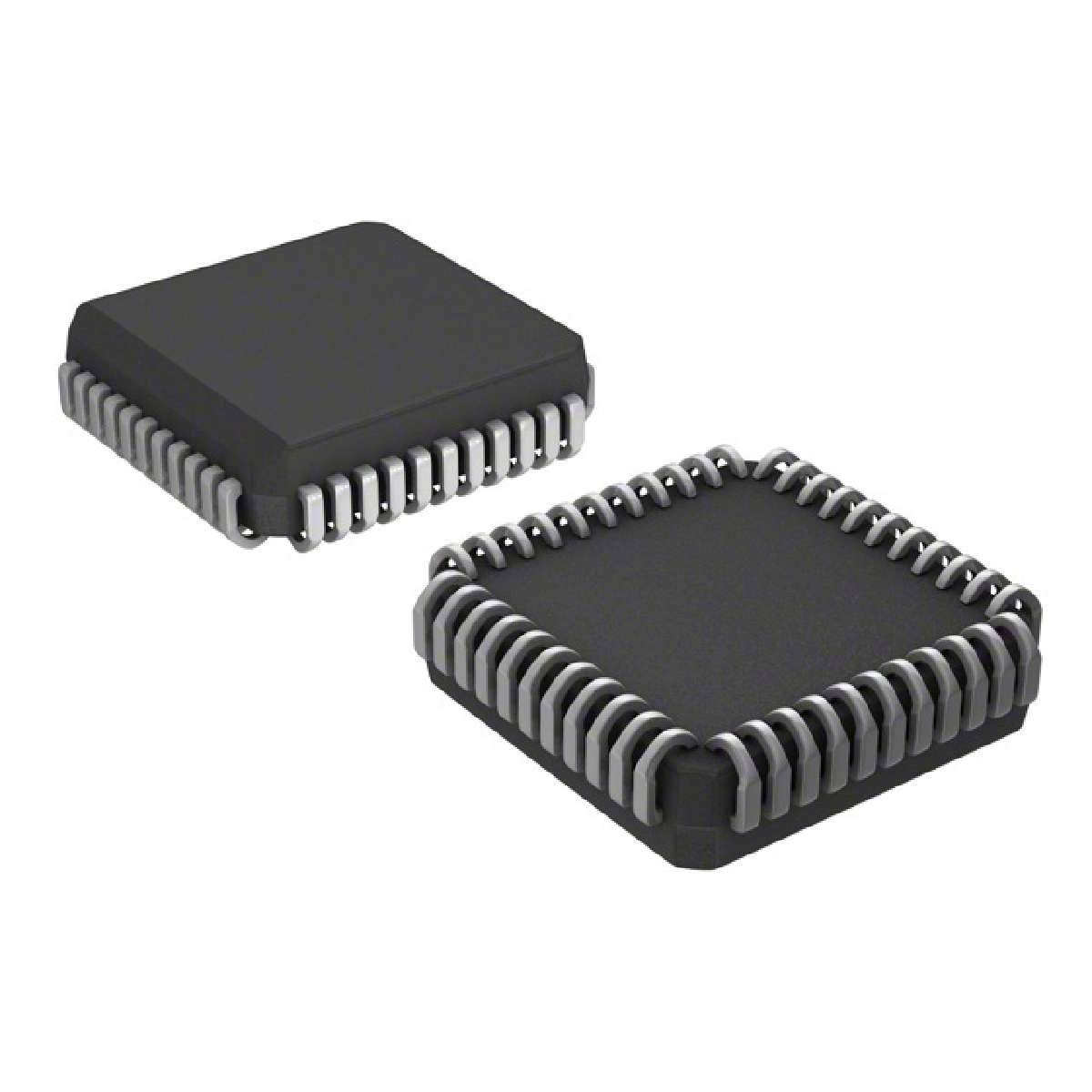

封装 PLCC-44
长度 16.7 mm
宽度 16.7 mm
高度 3.48 mm
封装 PLCC-44
工作温度 -40℃ ~ 85℃
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
