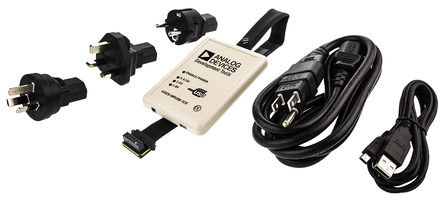

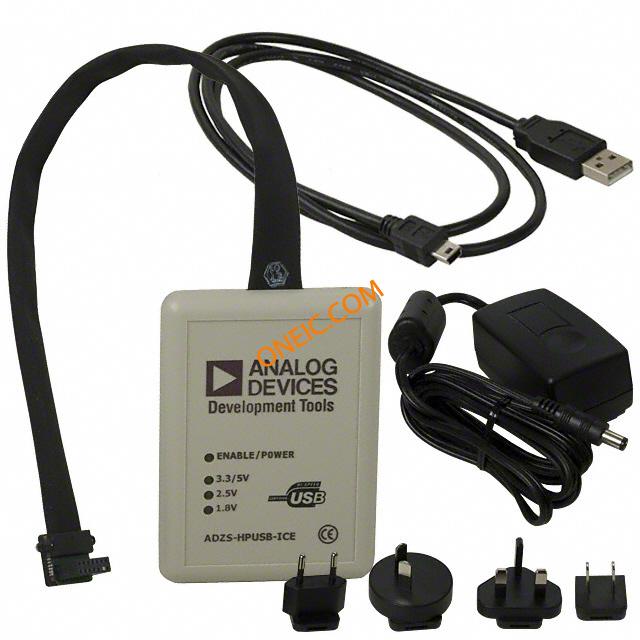

ANALOG DEVICES ADZS-HPUSB-ICE 仿真器, USB, HP CROSSCORE
is a cost-effective High Performance HP Universal Serial Bus USB-based emulator which provide an easy, portable, non-intrusive, target-based debugging solution for Analog Devices JTAG processors and DSPs. These powerful USB-based emulators perform a wide range of emulation functions including single-step and full speed execution with pre-defined breakpoints and viewing and/or altering of register and memory contents. With the ability to automatically detect and support multiple I/O voltages, the USB and HP USB emulators enable users to communicate with all of the Analog Devices JTAG processors and DSPs using either a full speed USB1.1 or high-speed USB2.0 port on the host PC. Applications and data can easily be tested and transferred between the emulators , VisualDSP++ debuggers which are sold separately.
- .
- High speed USB 2.0 interface enabling download speeds of up to 1.5MB/sec
- .
- Background Telemetry Channel BTC support enabling non-intrusive data exchange at up to 2.0 MB/sec
- .
- 1.8V, 2.5V and 3.3V compliant and tolerant
- .
- Support for all JTAG processors and DSPs
- .
- 5V tolerant and 3.3V compliant for 5V processors and DSPs
- .
- Multiprocessor support
- .
- 14 pin JTAG connector
- .
- 3 meter USB cable for difficult to reach targets
- .
- CE certified
- .
- Plug-n-Play, USB 2.0 compliant
静电敏感
Do not connect or disconnect a HPUSB emulator JTAG header, whether powered up or not, to/from a powered target.
