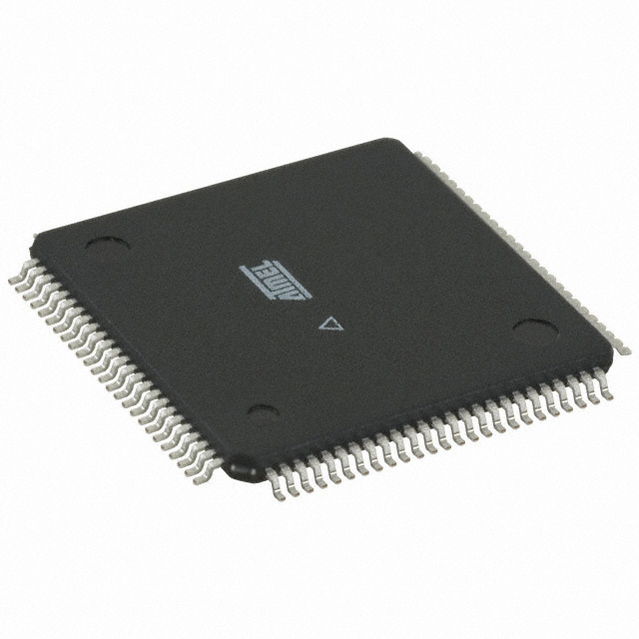

ATMEGA1280-16AU

ATmega 系列 16 MHz 128 KB 闪存 8 KB SRAM 8位 微控制器 - TQFP-100

The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 4kb EEPROM, 86 general purpose I/O lines, 32 general purpose working registers, real time counter, six flexible timer/counters with compare modes, PWM, 4 USARTs, byte oriented 2-wire serial interface, 16-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device achieves a throughput of 16 MIPS at 16MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves a throughput approaching 1 MIPS per MHz, balancing power consumption and processing speed.

.

High-performance, Low-power AVR® 8-Bit Microcontroller

.

Advanced RISC Architecture

.

High Endurance Non-volatile Memory Segments

.

Atmel® QTouch® Library Support

.

JTAG IEEE® Standard 1149.1 Compliant Interface

.

Power-on Reset and Programmable Brown-out Detection

.

Internal Calibrated Oscillator

.

External and Internal Interrupt Sources

.

Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby Sleep Modes

.

1MHz, 1.8V, 500µA Active Mode and 0.1µA at 1.8V Power-down Mode Ultra-low Power Consumption

.

0 to 16MHz at 4.5 to 5.5V Speed Grade
