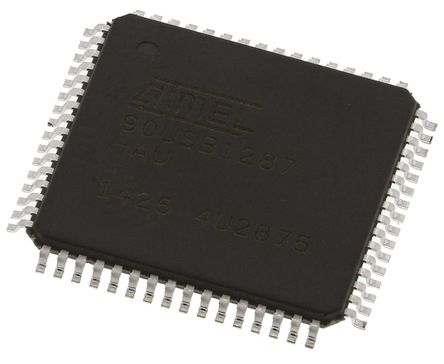

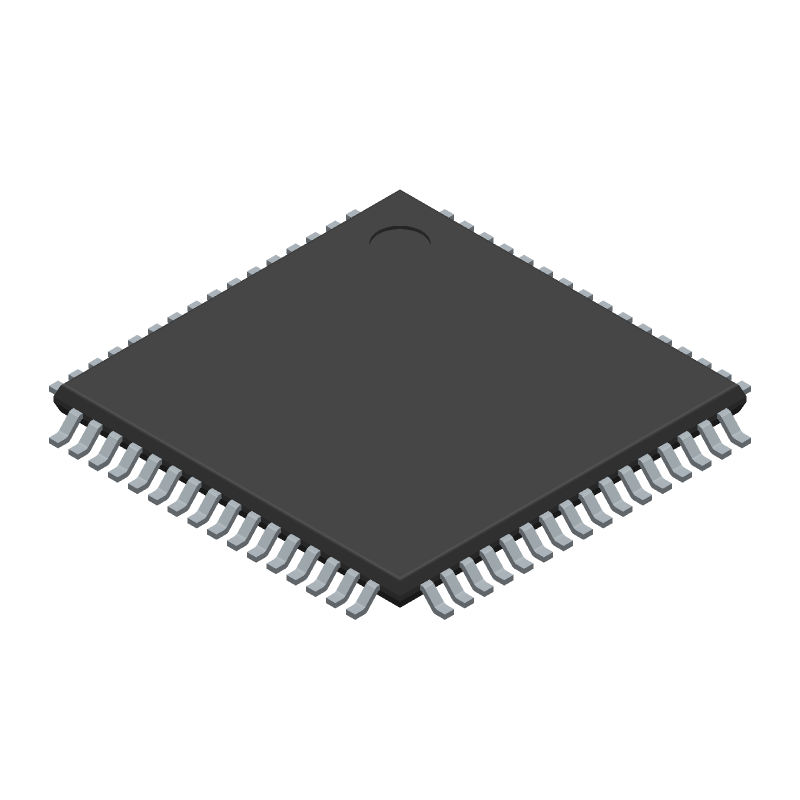

AT90USB1287-AU

ATMEL  AT90USB1287-AU  芯片, 8位微控制器, AVR, 128K闪存, USB, 64TQFP

The is a 8-bit high-performance low-power AVR RISC-based Microcontroller combines 128kB ISP flash memory with read-while-write capabilities, 4kB EEPROM, 8kB SRAM, 48 general purpose I/O lines, 32 general purpose working registers, real time counter, four flexible timer/counters with compare modes and PWM, USART, byte oriented 2-wire serial interface, USB 2.0 low-speed and full-speed On-The-Go OTG host/device, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG IEEE 1149.1 compliant interface for on-chip debugging and six software selectable power saving modes. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed.

.

Advanced RISC architecture - On-chip 2-cycle multiplier

.

Non-volatile program and data memories

.

JTAG IEEE 1149.1 compliant interface - Extensive on-chip debug support

.

USB 2.0 full-speed/low-speed device and on-the-go module

.

USB full-speed/low speed device module with interrupt on transfer completion

.

USB OTG reduced host

.

Peripheral features - Real time counter with separate oscillator

.

Power-on reset POR and programmable brown-out detection

.

Internal calibrated oscillator

.

External and internal interrupt sources

.

Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
