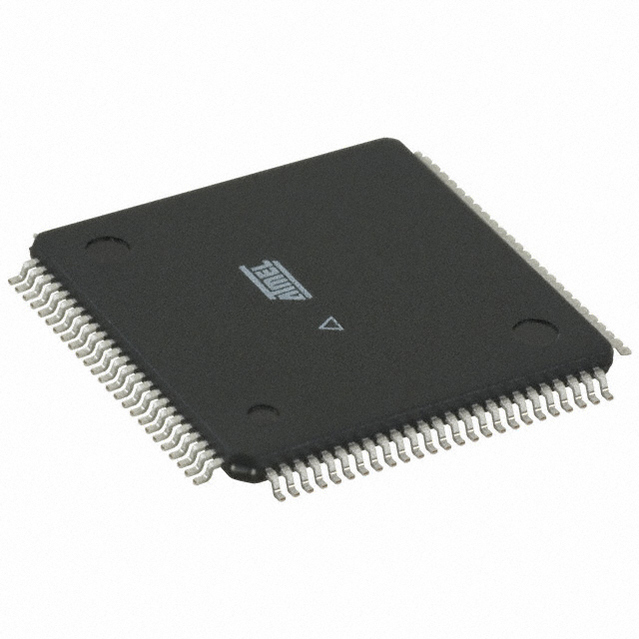

ATMEGA6490-16AU

8位微控制器 -MCU AVR 64K FLASH 2K EE 4K SRAM ADC LCD

The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 64kB ISP flash memory, 4kB SRAM, 2kB EEPROM, 4 x 40 segment LCD driver, 68 programmable I/O lines, an 8-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device achieves throughput of 16MIPS at 16MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using Atmel"s high density non-volatile memory technology. The on-chip in-system re-programmable ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional non-volatile memory programmer, or by an on-chip boot program running on the AVR core.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Five sleep modes - Idle, ADC noise reduction, power-save, power-down and standby

.

130 Powerful instructions-most single clock cycle execution

.

32 x 8 General purpose working registers

.

Fully static operation

.

Up to 16MIPS throughput at 16MHz

.

On-chip 2-cycle multiplier

.

JTAG IEEE std. 1149.1 compliant interface

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change

.

Two 8-bit timers/counters with separate prescalers and compare modes

.

One 16-bit timer/counter with separate prescaler, compare mode and capture mode

.

Real-time counter with separate oscillator

.

Four PWM channels

.

Programmable serial USART

.

Master/Slave SPI serial interface
