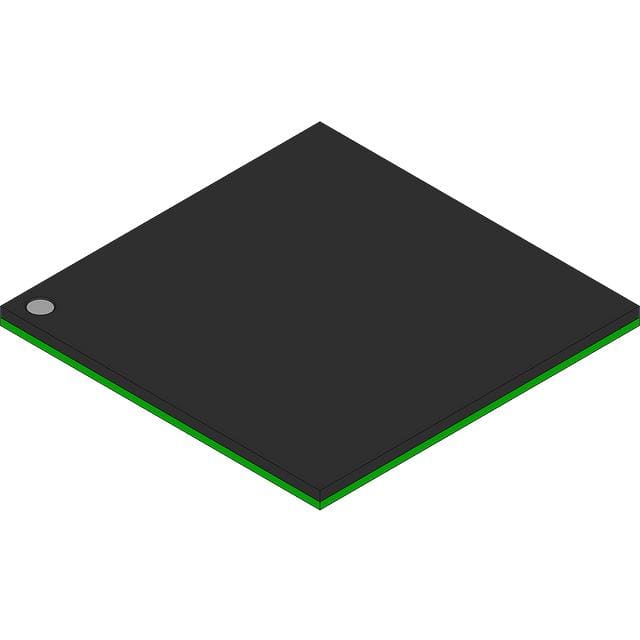

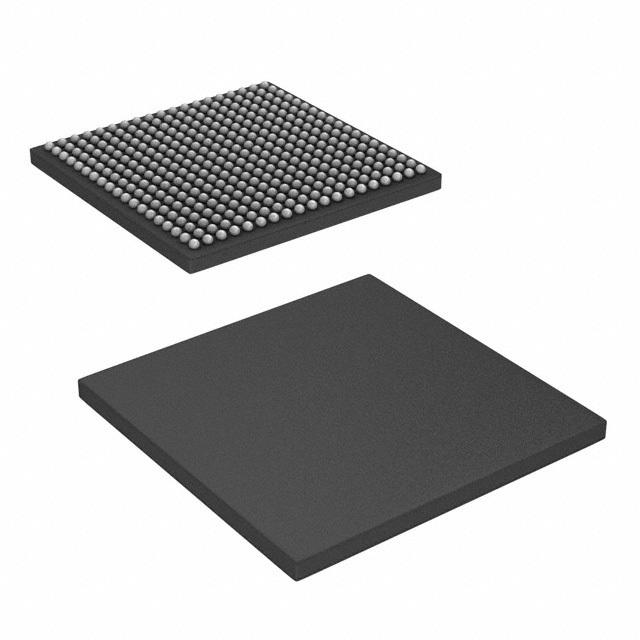

AM1802EZCED3

微处理器 - MPU Sitara Processor

The AM1802 ARM microprocessor is a low-power applications processor based on ARM926EJ-S.

The device enables original-equipment manufacturers OEMs and original-design manufacturers ODMs to quickly bring to market devices featuring robust operating systems support, rich user interfaces, and high processing performance life through the maximum flexibility of a fully integrated mixed processor solution.

The ARM926EJ-S is a 32-bit RISC processor core that performs 32-bit or 16-bit instructions and processes 32-bit, 16-bit, or 8-bit data. The core uses pipelining so that all parts of the processor and memory system can operate continuously.

The ARM core has a coprocessor 15 CP15, protection module, and data and program memory management units MMUs with table look-aside buffers. The ARM core processor has separate 16-KB instruction and 16-KB data caches. Both are four-way associative with virtual index virtual tag VIVT. The ARM core also has 8KB of RAM Vector Table and 64KB of ROM.

The peripheral set includes: a 10/100 Mbps Ethernet media access controller EMAC with a management data input/output MDIO module; one USB2.0 OTG interface; one inter-integrated circuit I2C Bus interface; one multichannel audio serial port McASP with 16 serializers and FIFO buffers; two serial peripheral interfaces SPIs with multiple chip selects; four 64-bit general-purpose timers each configurable one configurable as watchdog; a configurable 16-bit host-port interface HPI; up to 9 banks of general-purpose input/output GPIO pins, with each bank containing 16 pins with programmable interrupt and event generation modes, multiplexed with other peripherals; three UART interfaces each with RTS and CTS; two external memory interfaces: an asynchronous and SDRAM external memory interface EMIFA for slower memories or peripherals; and a higher speed DDR2/Mobile DDR controller.

The EMAC provides an efficient interface between the device and a network. The EMAC supports both 10Base-T and 100Base-TX, or 10 Mbps and 100 Mbps in either half- or full-duplex mode. Additionally, an MDIO interface is available for PHY configuration. The EMAC supports both MII and RMII interfaces.

The rich peripheral set provides the ability to control external peripheral devices and communicate with external processors. For details on each of the peripherals, see the related sections in this document and the associated peripheral reference guides.

The device has a complete set of development tools for the ARM processor. These tools include C compilers, and scheduling, and a Windows debugger interface for visibility into source code execution.
