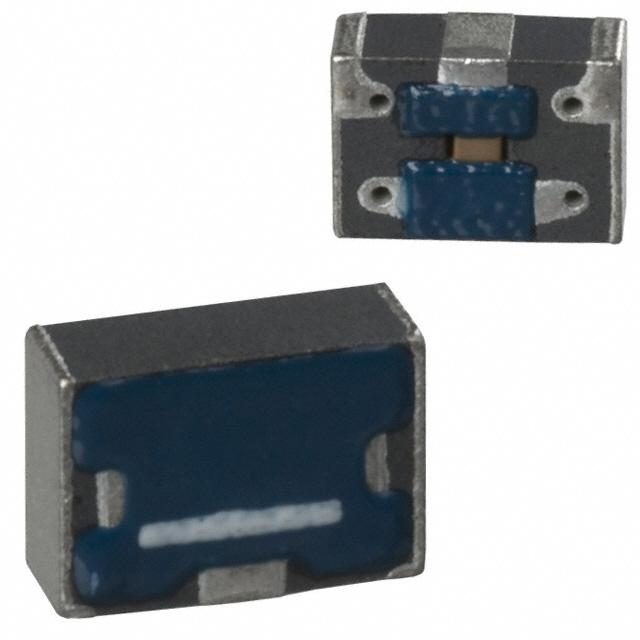

EMI Filter 25dB 2A 50VDC Flat Style SMD T/R
Feature Ferrite bead and a capacitor is a combination of T-type EMC filters can be applied to a large Current circuit. Stable circuit for grounding can play a huge damping effect. Vertical installation design, installation space, ideal for high density circuits. Guaranteed temperature range is -40 ~ +125 ° C, can be used under harsh environmental conditions. This product is suitable for reflow welding method. Use HE equipment TV, VTR, CD, DAT, electronic musical instruments, personal computers, etc. OA equipment computers, terminals, word processors, fax machines, etc. FA equipment robots, CNC machine tools, process controllers, etc. AE device car navigation device, ECU, etc.
额定电流 2 A
电容 1500 pF
通道数 1
屏蔽 No
测试频率 75 MHz
额定电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 50 VDC
额定电压 50 V

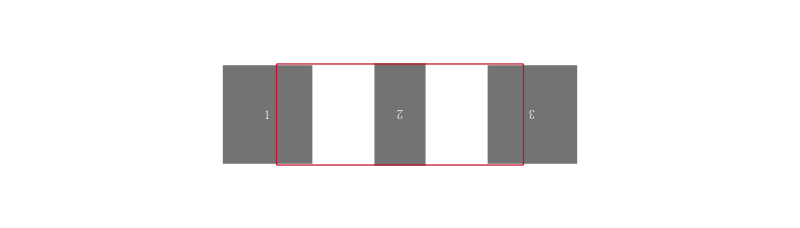

安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 3.2 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532240020
