ACM4532-601-2P-T001

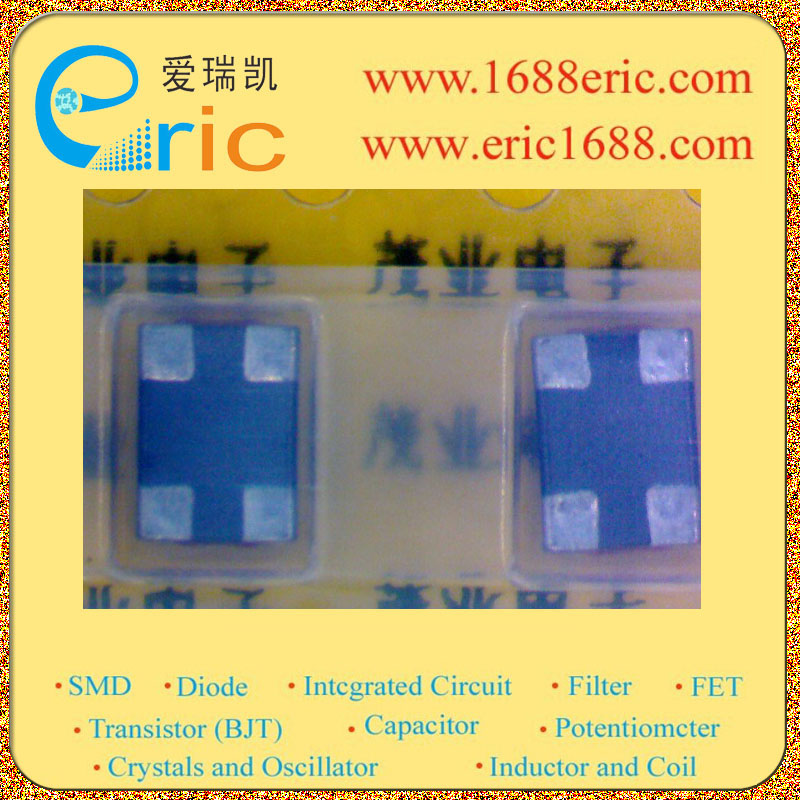

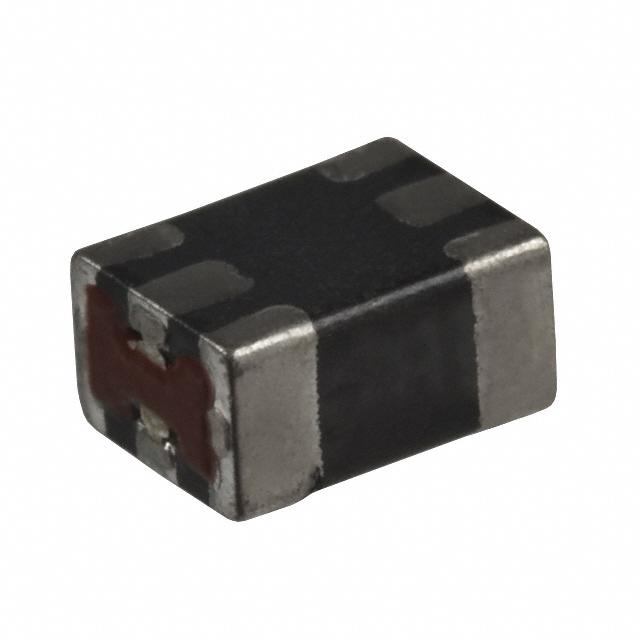

TDK  ACM4532-601-2P-T001  扼流圈,共模 2X600Z

线路数Number of Lines| 2 \---|--- 值Inductance| 电流Current| 1500mA 电阻DCRDC Resistance DCR| 10R 阻抗Impedance| 600R Description & Applications| FEATURES • A chip-type common mode filter for large current applications. Common mode impedance surpasses 300 to 1000Ω at 100MHz. Noise is greatly suppressed. • Capable of handling the highest current up to 10A of any chiptype common mode filter. • Height and size have been considered, resulting in a compact and light-weight choke coil. Applicable for the miniaturization required to reduce the size and weight of portable equipment. • The products contain no lead and also support lead-free soldering. • This product does not contain regulated substances that are slated to be included in RoHS. APPLICATIONS Used for power line noise suppression for any electronic devices Used to counter adapter/battery line noise for relatively large electronic devices such as notebook PCs, stand-alone word processors, etc 描述与应用| 特点 •大电流应用的芯片型共模滤波器。 共模阻抗超过300〜1000Ω在100MHz。 噪音被大大抑制。 •能够处理最高电流（高达10A）的任何芯片类型的共模滤波器。 •高度和大小已被考虑，从而实现紧凑 ，重量轻的扼流线圈。适用于小型化的 降低便携式设备的尺寸和重量的需要。 •该产品不含有铅和支持无铅 焊接。 •本产品不含有受管制物质， 预计被列入限制有害物质指令（RoHS）规范。 应用 使用任何电子设备的电源线噪声抑制 用来对付适配器/电池线路噪声比较大的电子设备，如笔记本电脑，单机字处理器等
