AU1PD-M3/84A

VISHAY  AU1PD-M3/84A  快速/超快二极管, 雪崩, 单, 200 V, 1 A, 1.5 V, 75 ns, 30 A

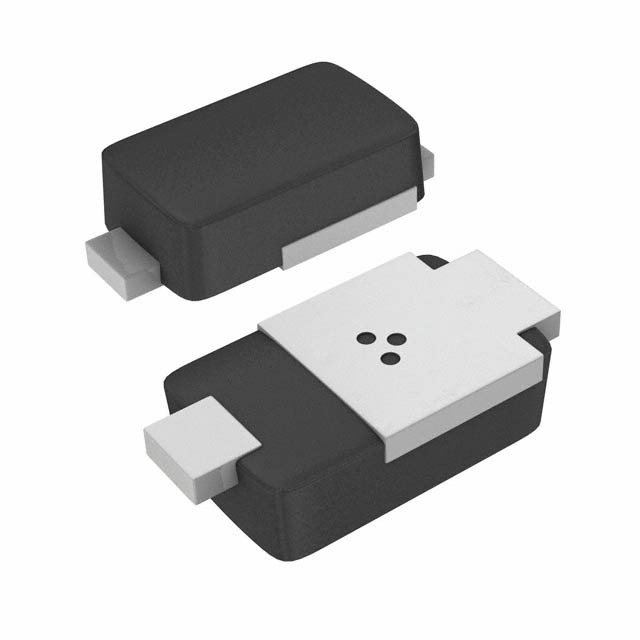

The is a surface-mount ultra-fast Avalanche Rectifier with solderable matte tin-plated terminals. It is suitable for use in secondary rectification and free-wheeling for ultra-fast switching speeds of AC/AC and DC/DC converters in high temperature conditions.

.

Very low-profile

.

Ideal for automated placement

.

Glass-passivated pallet chip junction

.

Ultra-fast recovery times for high frequency

.

Low reverse current

.

Meets MSL level 1 as per J-STD-020, LF maximum peak of 260°C

.

Halogen-free

.

AEC-Q101 qualified

.

UL94V-0 Flammability rating
