AM1808BZWTD4

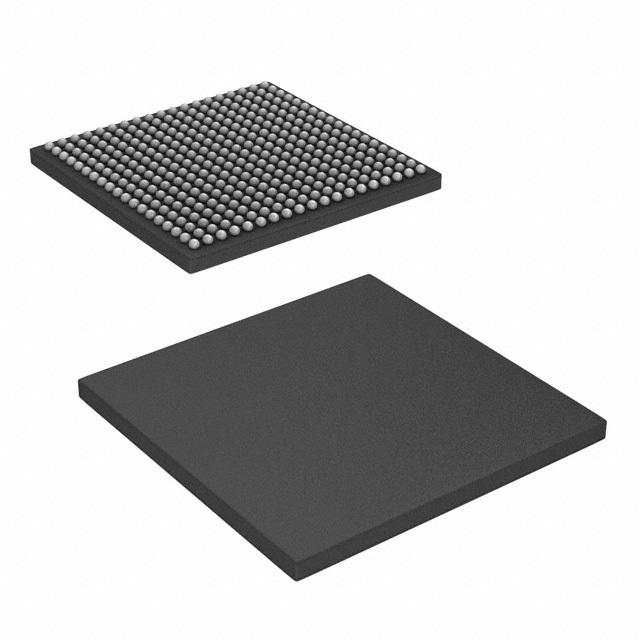

TEXAS INSTRUMENTS  AM1808BZWTD4  芯片, 微处理器, 32位, 456MHZ, NFBGA-361

The Sitara - AM1x series ARM Microprocessor enables original-equipment manufacturers OEMs and original-design manufacturers ODMs to quickly bring to market devices featuring robust operating systems support, rich user interfaces and high processing performance life through the maximum flexibility of a fully integrated mixed processor solution. The ARM926EJ-S is a 32-bit RISC processor core that performs 32-bit or 16-bit instructions and processes 32-, 16- or 8-bit data. The core uses pipelining so that all parts of the processor and memory system can operate continuously. The ARM core has a coprocessor 15 CP15, protection module and data and program memory management units MMUs with table look-aside buffers. The ARM core processor has separate 16kB instruction and 16kB data caches. Both are four-way associative with virtual index virtual tag VIVT. The ARM core also has 8kB of RAM Vector Table and 64kB of ROM.

.

375- and 456-MHz ARM926EJ-S™ RISC MPU

.

ARM Jazelle® technology single-cycle MAC ARM926EJ-S core

.

Enhanced direct memory access controller 3 EDMA3

.

128kB On-chip memory

.

1.8 or 3.3V LVCMOS I/Os except for USB and DDR2 interfaces

.

Two external memory interfaces - EMIFA and DDR2/mobile DDR memory controller

.

Three configurable 16550-type UART modules

.

LCD controller

.

Two serial peripheral interfaces SPIs each with multiple chip selects

.

Two multimedia card MMC/secure digital card SD interfaces with secure data I/O SDIO interfaces

.

Two master and slave inter-integrated circuits I²C Bus™

.

One host-port interface HPI with 16-bit-wide Muxed address and data bus for high bandwidth

.

Programmable real-time unit subsystem PRUSS

.

USB 1.1 OHCI host with integrated PHY USB1

.

USB 2.0 OTG port with integrated PHY USB0

.

One multichannel audio serial port McASP

.

Two multichannel buffered serial ports McBSPs

.

10/100Mbps Ethernet MAC EMAC

.

Video port interface VPIF

.

Universal Parallel Port uPP - High-speed parallel interface to FPGAs and data converters
