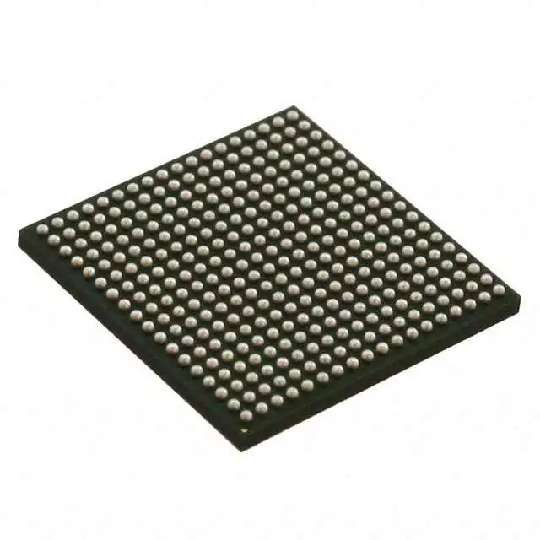

AM3358ZCZD72

TEXAS INSTRUMENTS  AM3358ZCZD72  受限产品, 芯片, 微处理器, 32位, AM335X, 720MHZ, NFBGA-324

The Sitara AM335x series Sitara™ Microprocessor based on the ARM Cortex-A8 processor, is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems HLOS. Linux® and Android™ are available free of charge from . The microprocessor unit MPU subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ graphics accelerator subsystem provides 3D graphics acceleration to support display and gaming effects. The PRU-ICSS is separate from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility. The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos and others.

.

Up to 1GHz Sitara™ ARM® Cortex® -A8 32-Bit RISC processor

.

64kB General-purpose on-chip memory controller OCMC RAM

.

External memory interfaces EMIF- General-purpose memory controller GPMC

.

Error locator module ELM

.

Programmable real-time unit subsystem and industrial communication subsystem PRU-ICSS

.

Five ADPLLs to generate system clocks

.

Two non-switchable power domains Real-time clock RTC, wake-up logic wake-up

.

Real-time date day-month-year-day of week and time hours-minutes-seconds information

.

Up to two USB 2.0 high-speed OTG ports with integrated PHY

.

Up to two controller-area network CAN ports

.

Programmable high-quality image anti-aliasing

.

Fully virtualized memory addressing for OS operation in an unified memory architecture

.

LCD controller

.

12-bit successive approximation register SAR ADC

.

Up to Three enhanced high-resolution PWM modules eHRPWMs

.

Two programmable real-time units PRUs

.

12kB Shared RAM with single-error detection parity

.

Peripherals inside the PRU-ICSS

.

Power, reset and clock management PRCM module

.

Device identification
