CMOS低压2 OHM SPST开关 CMOS Low Voltage 2 OHM SPST Switches

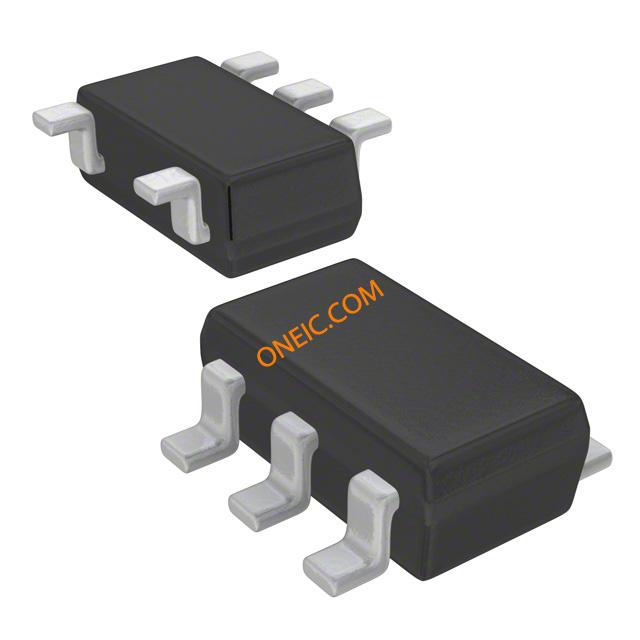

1 Circuit IC Switch 1:1 3Ohm SOT-23-5
得捷:
IC SWITCH SPST CMOS SOT23-5
贸泽:
模拟开关 IC 75dB 2 Ohm 200MHz CMOS SPST
艾睿:
Analog Switch Single SPST 5-Pin SOT-23 T/R
安富利:
The ADG702L is a monolithic CMOS SPST switches. These switches are designed using an advanced submicron process that provides low power dissipation, yet offers high switching speed, low on resistance, and low leakage currents. In addition, -3 dB bandwidths of greater than 200 MHz can be achieved.The ADG702L can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices.Figure 1 and Figure 2 show that with a logic input of 1, the switch of the ADG701L is closed, while that of the ADG702L is open. Each switch conducts equally well in both directions when on.The ADG702L is packaged as 5-lead SOT-23, 6-lead SOT-23, and 8-lead MSOP.
Chip1Stop:
Analog Switch Single SPST 5-Pin SOT-23 T/R
供电电流 1 nA
电路数 1
耗散功率 5.00 µW
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 200 MHz
电源电压Max 5.5 V
电源电压Min 0 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 End of Life
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADG702LBRJZ-500RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADG702LBRJ-REEL7 亚德诺 | 完全替代 | ADG702LBRJZ-500RL7和ADG702LBRJ-REEL7的区别 |
ADG702LBRJZ-REEL7 亚德诺 | 类似代替 | ADG702LBRJZ-500RL7和ADG702LBRJZ-REEL7的区别 |
ADG702LBRMZ-REEL7 亚德诺 | 类似代替 | ADG702LBRJZ-500RL7和ADG702LBRMZ-REEL7的区别 |
