ADG3246BCPZ-REEL7

Bus Switch 1Element CMOS 10IN 24Pin LFCSP EP T/R

Product Details

The ADG3246 is a 2.5 V or 3.3 V, 10-bit, 2-port digital switch. It is designed on Analog Devices’ low voltage CMOS process, which provides low power dissipation yet gives high switching speed and very low on resistance, allowing inputs to be connected to outputs without additional propagation delay or generating additional ground bounce noise.

The switches are enabled by means of the bus enable BE input signal. These digital switches allow bidirectional signals to be switched when ON. In the OFF condition, signal levels up to the supplies are blocked.

This device is ideal for applications requiring level translation. When operated from a 3.3 V supply, level translation from 3.3 V inputs to 2.5 V outputs occurs. Similarly, if the device is operated from a 2.5 V supply and 2.5 V inputs are applied, the device will translate the outputs to 1.8 V. In addition to this, the ADG3246 has a level translating select pin SEL. When SEL is low, VCC is reduced internally, allowing for level translation between 3.3 V inputs and 1.8 V outputs. This makes the device suited to applications requiring level translation between different supplies, such as converter to DSP/microcontroller interfacing.

Product Highlights

1. 3.3 V or 2.5 V supply operation

2. Extremely low propagation delay through switch

3. 4.5 Ω switches connect inputs to outputs

4. Level/voltage translation

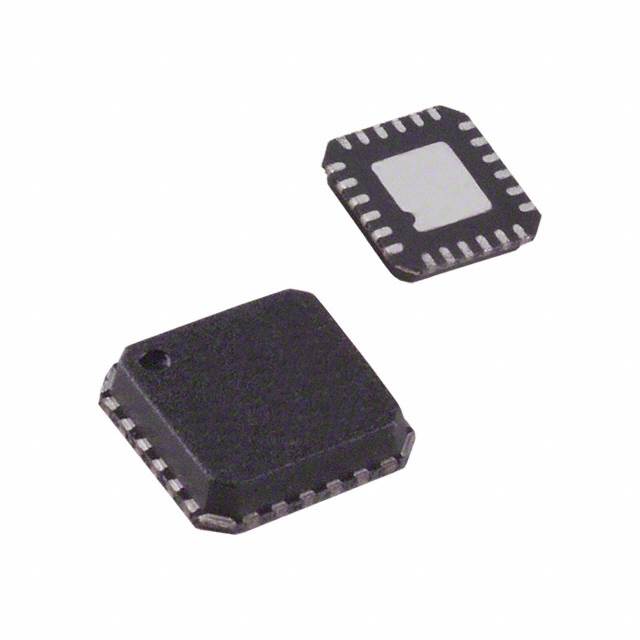

5. 24-lead 4 mm ¥ 4 mm LFCSP package

Applications

.

3.3 V to 1.8 V voltage translation

.

3.3 V to 2.5 V voltage translation

.

2.5 V to 1.8 V voltage translation

.

Bus switching

.

Bus isolation

.

Hot swap

.

Hot plug

.

Analog signal switching

### Features and Benefits

.

225 ps propagation delay through the switch

.

4.5 Ω switch connection between ports

.

Data rate 1.244 Gbps

.

2.5 V/3.3 V supply operation

.

Selectable level shifting/translation

.

Small signal bandwidth 610 MHz

.

Level translation

.

3.3 V to 2.5 V

.

3.3 V to 1.8 V

.

2.5 V to 1.8 V

.

24-Lead LFCSP package
