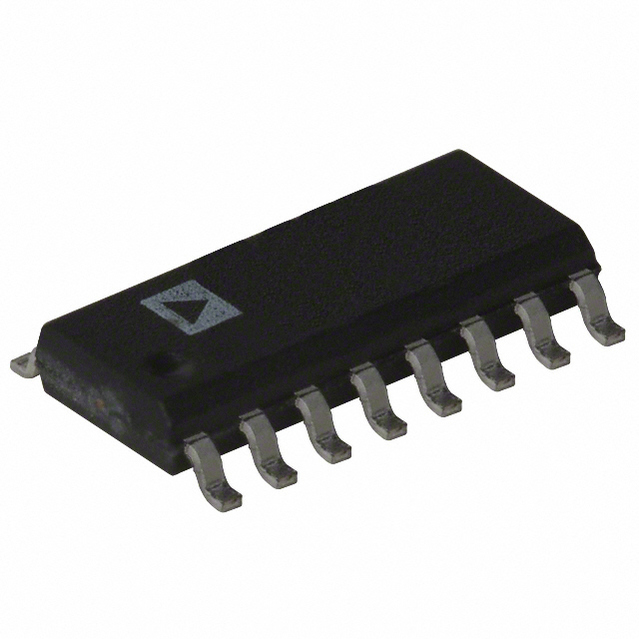

ADG712BR-REEL

CMOS低压， 4 I ©四路， SPST开关 CMOS Low Voltage, 4 Ω Quad, SPST Switches

电路 IC 开关 1：1 4 欧姆 16-SOIC

得捷:
IC SWITCH QUAD SPST 16SOIC

艾睿:
Analog Switch Quad SPST 16-Pin SOIC N T/R

安富利:
The ADG711, ADG712, and ADG713 are monolithic CMOS devices containing four independently selectable switches. These switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents, and high bandwidth.They are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc. Fast switching times and high bandwidth make the parts suitable for switching USB 1.1 data signals and video signals.The ADG711, ADG712, and ADG713 contain four independent single-pole/single-throw SPST switches. The ADG711 and ADG712 differ only in that the digital control logic is inverted. The ADG711 switches are turned on with a logic low on the appropriate control input, while a logic high is required to turn on the switches of the ADG712. The ADG713 contains two switches whose digital control logic is similar to the ADG711, while the logic is inverted on the other two switches.Each switch conducts equally well in both directions when On. The ADG713 exhibits break-before-make switching action.

Chip1Stop:
Analog Switch Quad SPST 16-Pin SOIC N T/R

罗切斯特:
Analog Switch Quad SPST 16-Pin SOIC N T/R
