ADG731BSU

16位/ 32通道，串行控制4 з 1.8 V至5.5 V ， 【 2.5 V ，模拟多路复用器 16-/32- Channel, Serially Controlled 4 з 1.8 V to 5.5 V, 【2.5 V, Analog Multiplexers

GENERAL DESCRIPTION

The ADG725/ADG731 are monolithic CMOS 32 channel/dual 16 channel analog multiplexers with a serially controlled 3-wire interface. The ADG732 switches one of thirty-two inputs S1-S32 to a common output, D. The ADG725 can be configured as a dual mux switching one of sixteen inputs to one output or a differential mux switching one of sixteen inputs to a differential output.

FEATURES

3-Wire SPI Serial Interface

1.8 V to 5.5 V Single Supply

±2.5 V Dual Supply Operation

4 ΩOn Resistance

0.5 ΩOn Resistance Flatness

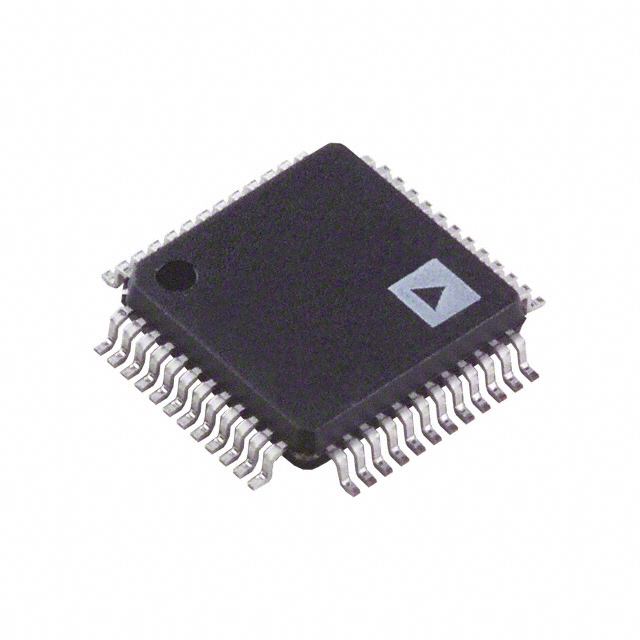

7mm x 7mm 48 lead Chip Scale Package CSP or 48 lead TQFP package.

Rail to Rail Operation

Power On Reset

Fast Switching Times

Single 32 to 1 Channel Multiplexer

Dual/Differential 16 to 1 Channel Multiplexer

TTL/CMOS Compatible Inputs

For Functionally Equivalent devices with Parallel Interface See ADG726/ADG732

APPLICATIONS

Optical Applications

Data Acquisition Systems

Communication Systems

Relay replacement

Audio and Video Switching

Battery Powered Systems

Medical Instrumentation

Automatic Test Equipment
