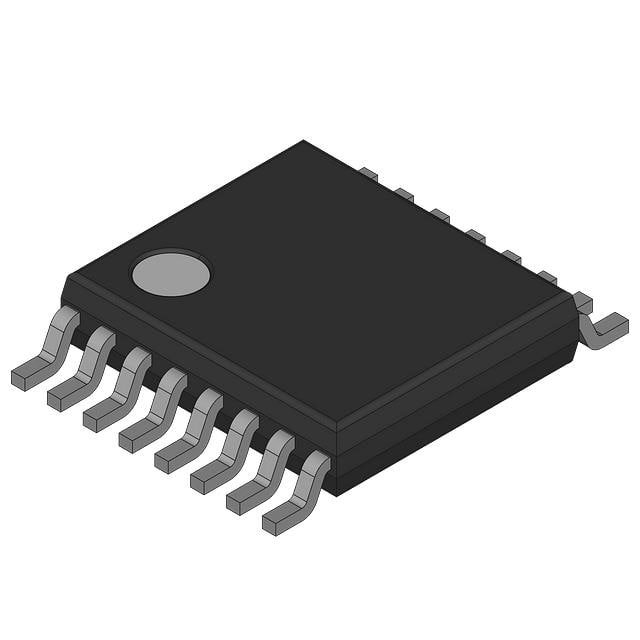

ADF4116BRUZ-REEL

锁相环 - PLL SGL Integer-N 550 MHz

Product Details

The ADF4116/ADF4117/ADF4118 are frequency synthesizers which can be used to implement local oscillators in the up-conversion and down-conversion sections of wireless receivers and transmitters. They consist of a low-noise digital PFD Phase Frequency Detector, a precision charge pump, a programmable reference divider, programmable A and B counters and a dual-modulus prescaler P/P+1. The A 5-bit and B 13-bit counters, in conjunction with the dual modulus prescaler P/P+1, implement an N divider N= BP+A. In addition, the 14-bit reference counter R Counter, allows selectable REFIN frequencies at the PFD input. A complete PLL Phase-Locked Loop can be implemented if the synthesizer is used with an external loop filter and VCO Voltage Controlled Oscillator.

Control of all the on-chip registers is via a simple 3-wire interface.

The devices operate with a 2.7V ± 10% or 5V ± 10% power supply and can be powered when not in use.

### Features and Benefits

.

ADF4116: 550 MHz

.

ADF4117: 1.2 GHz

.

ADF4118: 3.0 GHz

.

2.7 V to 5.5 V power supply

.

Separate VP allows extended tuning voltage in 3 V systems

.

Y Grade: −40°C to +125°C

.

Dual-modulus prescaler

.

ADF4116: 8/9

.

ADF4117/ADF4118: 32/33

.

3-wire serial interface

.

Digital lock detect

.

Power-down mode

.

Fastlock mode
