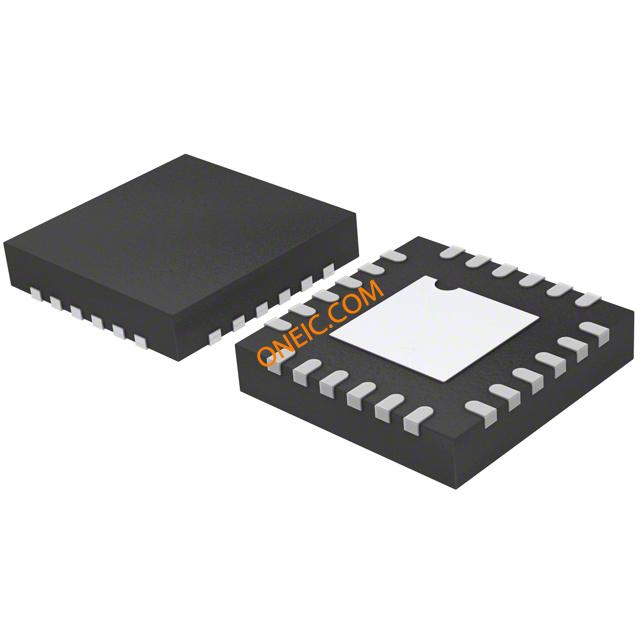

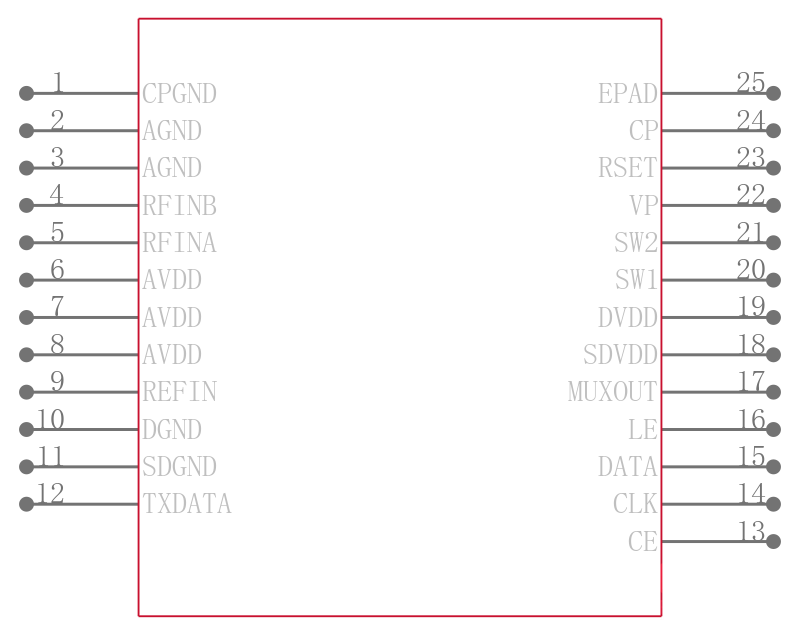

ADF4158WCCPZ-RL7

锁相环 - PLL IC 6.1 GHz Frac-N Direct Modulation

Product Details

The ADF4158 is a 6.1 GHz, fractional-N frequency synthesizer with modulation and waveform generation capability. It contains a 25-bit fixed modulus, allowing subhertz resolution at 6.1 GHz. It consists of a low noise digital phase frequency detector PFD, a precision charge pump, and a programmable reference divider. There is a sigma-delta Σ-Δ based fractional interpolator to allow programmable fractional-N division. The INT and FRAC registers define an overall N-divider as N = INT + FRAC/225.

The ADF4158 can be used to implement frequency shift keying FSK and phase shift keying PSK modulation. There are also a number of frequency sweep modes available, which generate various waveforms in the frequency domain, for example, sawtooth and triangular waveforms. Sweeps can be set to run automatically, or each step manually triggered by an external pulse. The ADF4158 features cycle slip reduction circuitry, which leads to faster lock times, without the need for modifications to the loop filter.

Control of all on-chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 2.7 V to 3.3 V and can be powered down when not in use.

**Applications**

.

Frequency modulated continuous wave FMCW radar

.

Communications test equipment

### Features and Benefits

.

RF bandwidth to 6.1 GHz

.

25-bit fixed modulus allows subhertz frequency resolution

.

Frequency and phase modulation capability

.

Sawtooth and triangular waveforms in the frequency domain

.

Parabolic ramp

.

Ramp superimposed with FSK

.

Ramp with 2 different sweep rates

.

Ramp delay

.

Ramp frequency readback

.

Ramp interruption

.

2.7 V to 3.3 V power supply

.

Separate VP allows extended tuning voltage

.

Programmable charge pump currents

.

3-wire serial interface

.

Digital lock detect

.

Power-down mode

.

Cycle slip reduction for faster lock times

.

Switched bandwidth fast-lock mode

.

Qualified for automotive applications
