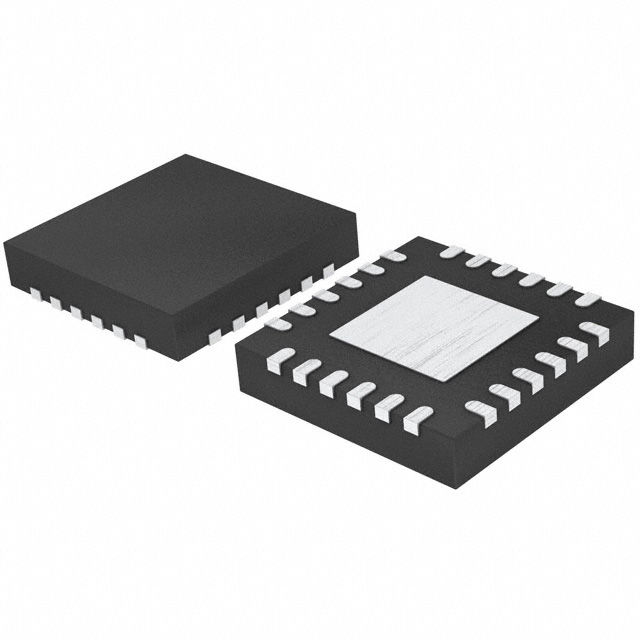

ADF4360-3BCPZRL

集成的合成器和VCO Integrated Synthesizer and VCO

GENERAL DESCRIPTION

The ADF4360-3 is a fully integrated integer-N synthesizer and voltage controlled oscillator VCO. The ADF4360-3 is designed for a center frequency of 1750 MHz. In addition, there is a divide-by-2 option available, whereby the user gets an RF out put of between 800 MHz and 975 MHz.

FEATURES

Output frequency range: 1600 MHz to 1950 MHz

Divide-by-2 output

3.0 V to 3.6 V power supply

1.8 V logic compatibility

Integer-N synthesizer

Programmable dual-modulus prescaler 8/9, 16/17, 32/33

Programmable output power level

3-wire serial interface

Analog and digital lock detect

Hardware and software power-down mode

APPLICATIONS

Wireless handsets DECT, GSM, PCS, DCS, WCDMA

Test equipment

Wireless LANs

CATV equipment
