AD9547BCPZ-REEL7

双路/四路输入网络时钟发生器/同步器 Dual/Quad Input Network Clock Generator/Synchronizer

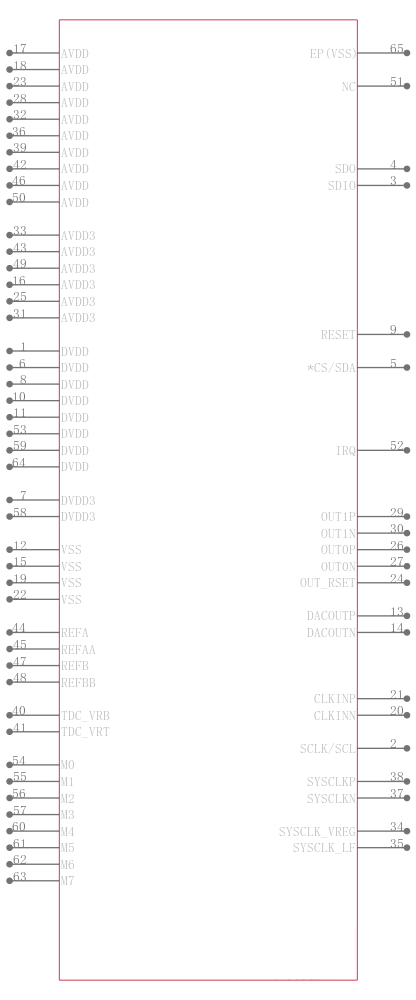

Product Details

The AD9547 provides synchronization for many systems, including synchronous optical networks SONET/SDH. The AD9547 generates an output clock that is synchronized to one of two differential or four single-ended external input references. The digital PLL allows for reduction of input time jitter or phase noise associated with the external references. The AD9547 con-tinuously generates a clean low jitter, valid output clock, even when all references fail, by means of digitally controlled loop and holdover circuitry.

The AD9547 operates over an industrial temperature range of −40°C to +85°C.

**Applications**

* Network synchronization

* Cleanup of reference clock jitter

* SONET/SDH clocks up to OC-192, including FEC

* Stratum 2 holdover, jitter cleanup, and phase transient control

* Stratum 3E and Stratum 3 reference clocks

* Wireless base stations, controllers

* Cable infrastructure

* Data communications

### Features and Benefits

.

Supports Stratum 2 stability in holdover mode

.

Supports reference switchover with phase build-out

.

Supports hitless reference switchover

.

Automatic/manual holdover and reference switchover

.

2 pairs of reference input pins, with each pair configurable as a single differential input or as 2 independent single-ended inputs

.

Input reference frequencies from 1 kHz to 750 MHz

|

.

Reference validation and frequency monitoring 1 ppm

.

Programmable input reference switchover priority

.

30-bit programmable input reference divider

.

2 pairs of clock output pins, with each pair configurable as a single differential LVDS/LVPECL output or as 2 single-ended CMOS outputs

.

Output frequencies up to 450 MHz

.

See data sheet for additional features

---|---
