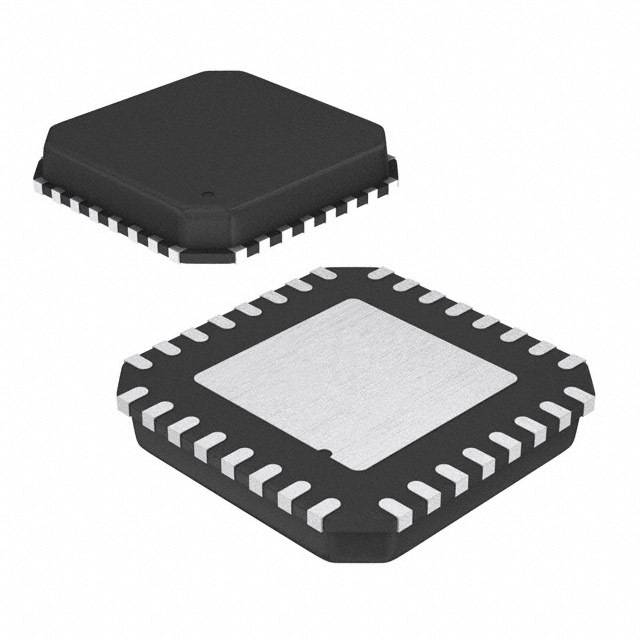

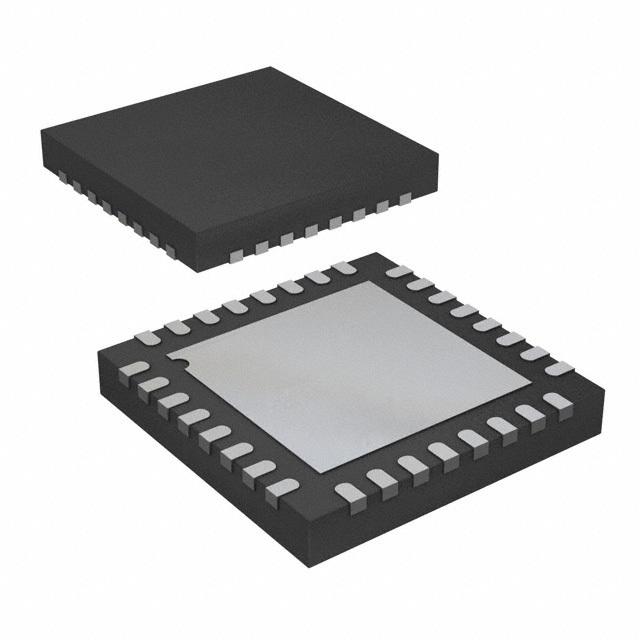

ADN2813ACPZ-500RL7概述

连续速率为10 Mb / s到1.25 Gb / s的时钟和数据恢复IC,集成限幅放大器 Continuous Rate 10 Mb/s to 1.25 Gb/s Clock and Data Recovery IC with Integrated Limiting Amp

Product Details

The ADN2813 provides the receiver functions of quantization, signal level detect, and clock and data recovery for continuous data rates from 12.3 Mb/s to 1.25 Gb/s. The ADN2813 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for −40°C to +85°C ambient temperature, unless otherwise noted.

This device, together with a PIN diode and a TIA preamplifier, can implement a highly integrated, low cost, low power fiber optic receiver.

The receiver front end loss of signal LOS detector circuit indicates when the input signal level has fallen below a useradjustable threshold. The LOS detect circuit has hysteresis to prevent chatter at the output.

The ADN2813 is available in a compact 5 mm × 5 mm 32-lead chip scale package.

**Applications**

.
SONET OC-1/3/12 and all associated FEC rates
.
Fibre Channel, GbE, HDTV, etc.
.
WDM transponders
.
Regenerators/repeaters
.
Test equipment
.
Broadband cross-connects and routers

### Features and Benefits

.
Serial data input: 12.3 Mb/s to 1.25 Gb/s
.
Exceeds SONET requirements for jitter transfer/generation/tolerance
.
Quantizer sensitivity: 6 mV typical
.
Adjustable slice level: ±100 mV
.
Patented clock recovery architecture
.
Loss of signal LOS detect range: 3 mV to 15 mV
.
Independent slice level adjust and LOS detector
.
No reference clock required
.
Loss of lock indicator
.
I2C® interface to access optional features
.
Single-supply operation: 3.3 V
.
Low power: 350 mW typical
ADN2813ACPZ-500RL7中文资料参数规格
技术参数

供电电流 139 mA

电路数 1

耗散功率 375 mW

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 375 mW

电源电压 3V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 32

封装 LFCSP-32

外形尺寸

长度 5 mm

宽度 5 mm

高度 0.83 mm

封装 LFCSP-32

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 5A991.b.3

数据手册

ADN2813ACPZ-500RL7引脚图与封装图

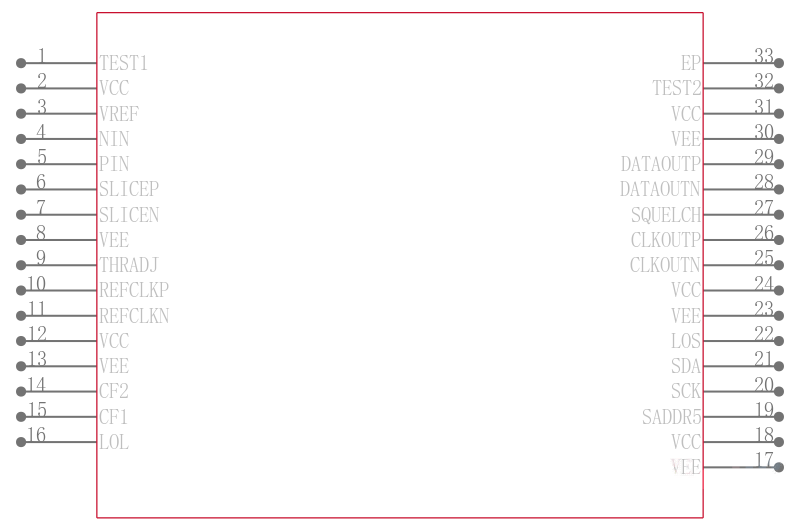

ADN2813ACPZ-500RL7引脚图

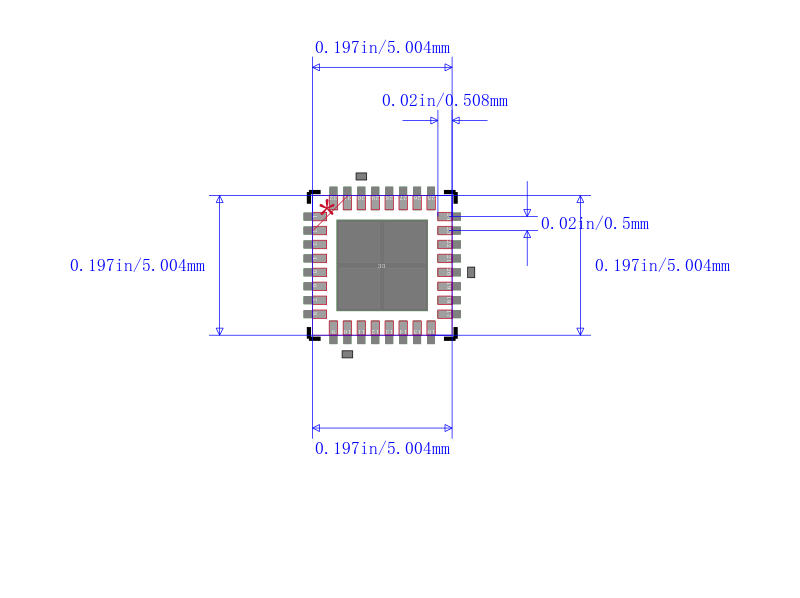

ADN2813ACPZ-500RL7封装图
ADN2813ACPZ-500RL7电路图

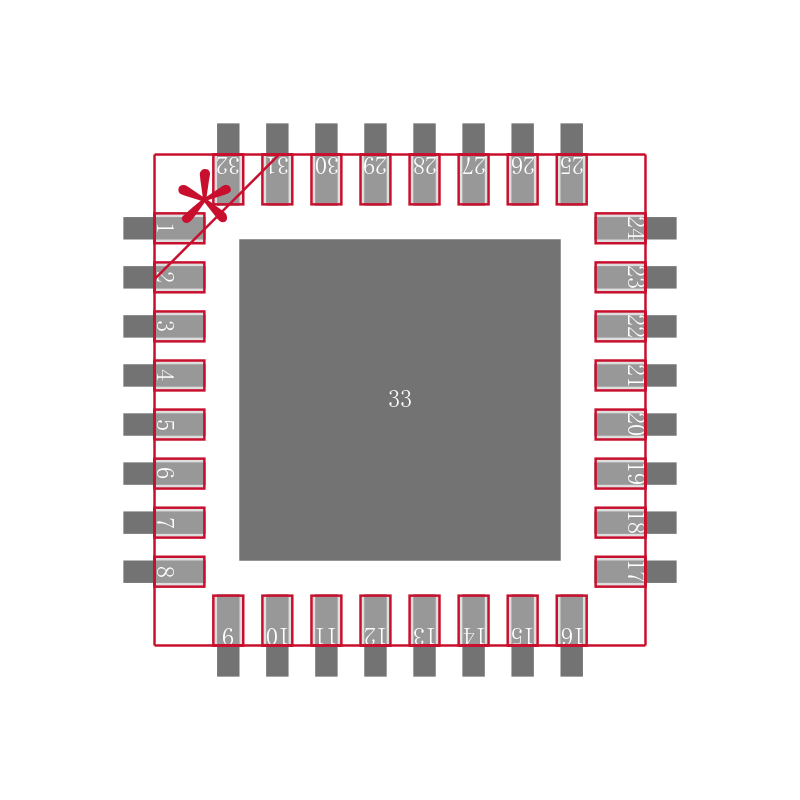

ADN2813ACPZ-500RL7封装焊盘图
