ANALOG DEVICES ADN2812ACPZ 芯片, 时钟与数据恢复器, 2.7GHZ, LFCSP-32
Product Details
The ADN2812 provides the receiver functions of quantization, signal level detect, and clock and data recovery for continuous data rates from 12.3 Mb/s to 2.7 Gb/s. The ADN2812 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for −40°C to +85°C ambient temperature, unless otherwise noted.
This device, together with a PIN diode and a TIA preamplifier, can implement a highly integrated, low cost, low power fiber optic receiver.
The receiver front end, loss of signal LOS detector circuit indicates when the input signal level has fallen below a user-adjustable threshold. The LOS detect circuit has hysteresis to prevent chatter at the output.

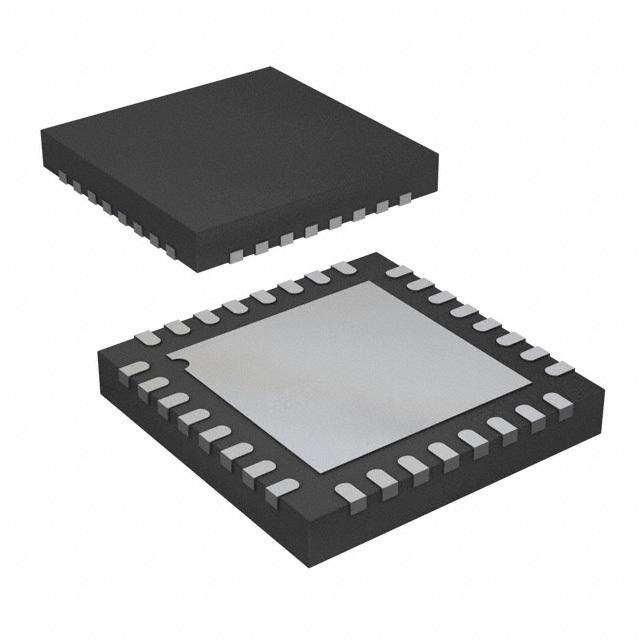

The ADN2812 is available in a compact 5 mm × 5 mm 32-lead lead frame chip scale package LFCSP.
**Applications**
### Features and Benefits
频率 2.7 GHz
电源电压DC 3.00V min
输出接口数 2
供电电流 235 mA
电路数 1
针脚数 32
耗散功率 750 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 32
封装 LFCSP-32
长度 5 mm
宽度 5 mm
高度 0.83 mm
封装 LFCSP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADN2812ACPZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADN2812ACPZ-RL7 亚德诺 | 完全替代 | ADN2812ACPZ和ADN2812ACPZ-RL7的区别 |
ADN2812ACPZ-RL 亚德诺 | 完全替代 | ADN2812ACPZ和ADN2812ACPZ-RL的区别 |
ADN2812ACP 亚德诺 | 功能相似 | ADN2812ACPZ和ADN2812ACP的区别 |
