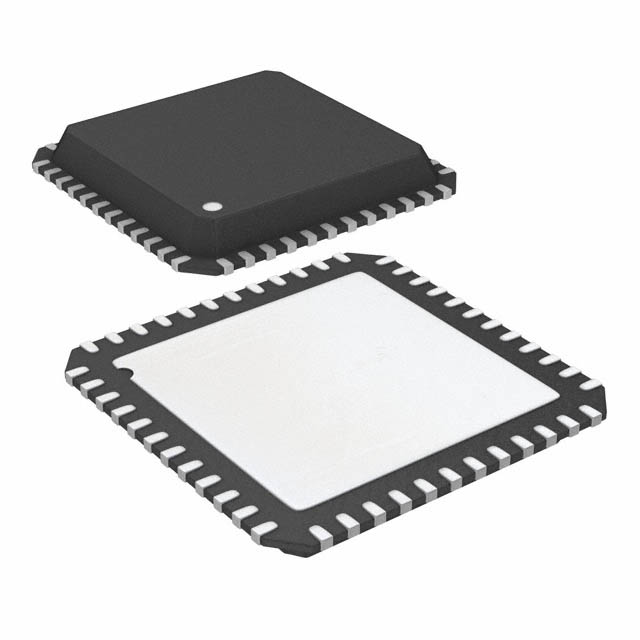

ADN2807ACP概述

155/622 Mb / s的时钟和数据恢复IC,集成限幅放大器 155/622 Mb/s Clock and Data Recovery IC with Integrated Limiting Amp

Product Details

The ADN2807 provides the receiver functions of quantization, signal level detect, and clock and data recovery at rates of OC-3, OC-12, and 15/14 FEC. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for –40°C to +85°C ambient temperature, unless otherwise noted.

The device is intended for WDM system applications and can be used with either an external reference clock or an on-chip oscillator with external crystal. Both native rates and 15/14 rate digital wrappers are supported by the ADN2807, without any change of reference clock.

This device, together with a PIN diode and a TIA preamplifier, can implement a highly integrated, low cost, low power, fiber optic receiver.

The receiver front end signal detect circuit indicates when the input signal level has fallen below a user adjustable threshold. The signal detect circuit has hysteresis to prevent chatter at the output.

The ADN2807 is available in a compact 7 mm × 7 mm 48-lead chip-scale package LFCSP.

Applications

.
SONET OC-3/-12, SDH STM-1/-4 and, 15/14 FEC rates
.
WDM transponders
.
Regenerators/repeaters
.
Test equipment
.
Passive optical networks

### Features and Benefits

.
Meets SONET requirements for jitter transfer/generation/tolerance
.
Quantizer sensitivity: 4 mV typical
.
Adjustable slice level: ±100 mV
.
Patented clock recovery architecture
.
Loss-of-signal detect range: 3 mV to 15 mV
.
Single-reference clock frequency for all rates, including15/14 7% wrapper rate
.
Choice of 19.44 MHz, 38.88 MHz, 77.76 MHz, or 155.52 MHz REFCLK
.
REFCLK inputs: LVPECL/LVDS/LVCMOS/LVTTL compatible LVPECL/LVDS only at 155.52 MHz
.
Optional 19.44 MHz on-chip oscillator to be used with external crystal
.
Loss-of-lock indicator
.
Loopback mode for high speed test data
.
Output squelch and bypass features
.
Single-supply operation: 3.3 V
.
Low power: 540 mW typical
.
7 mm × 7 mm, 48-lead LFCSP
ADN2807ACP中文资料参数规格
技术参数

电源电压DC 3.60V max

供电电流 164 mA

耗散功率 500 mW

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 48

封装 LFCSP EP

外形尺寸

高度 0.83 mm

封装 LFCSP EP

其他

产品生命周期 Obsolete

包装方式 Tray

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

ADN2807ACP引脚图与封装图

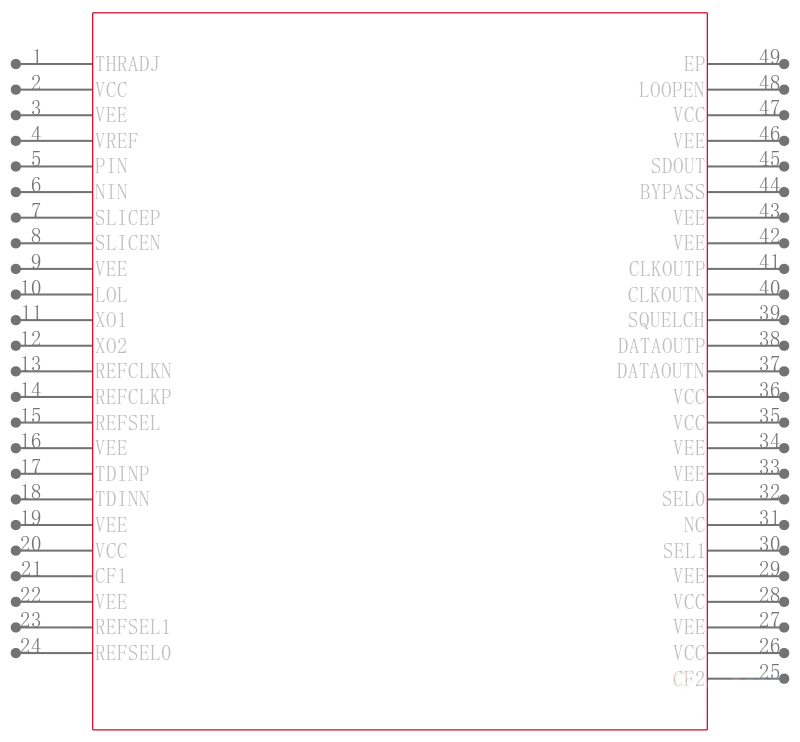

ADN2807ACP引脚图

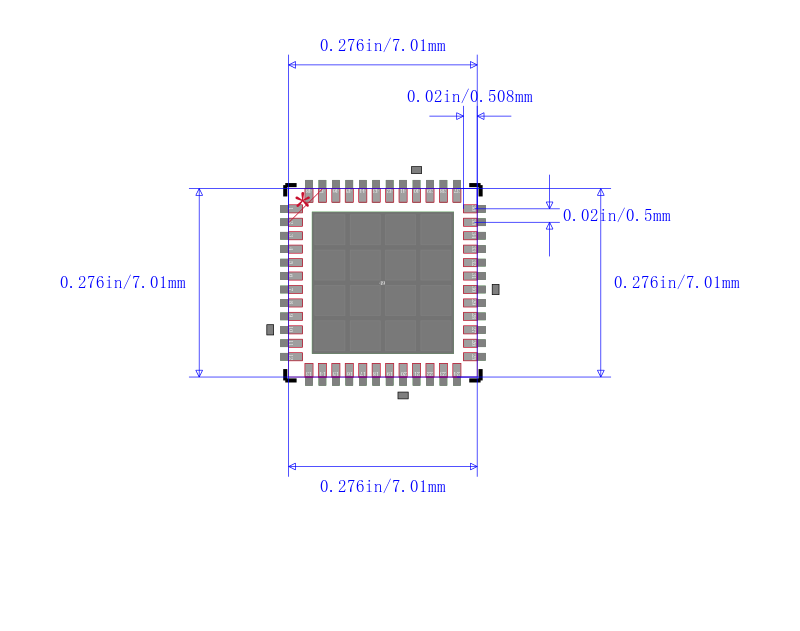

ADN2807ACP封装图
ADN2807ACP电路图

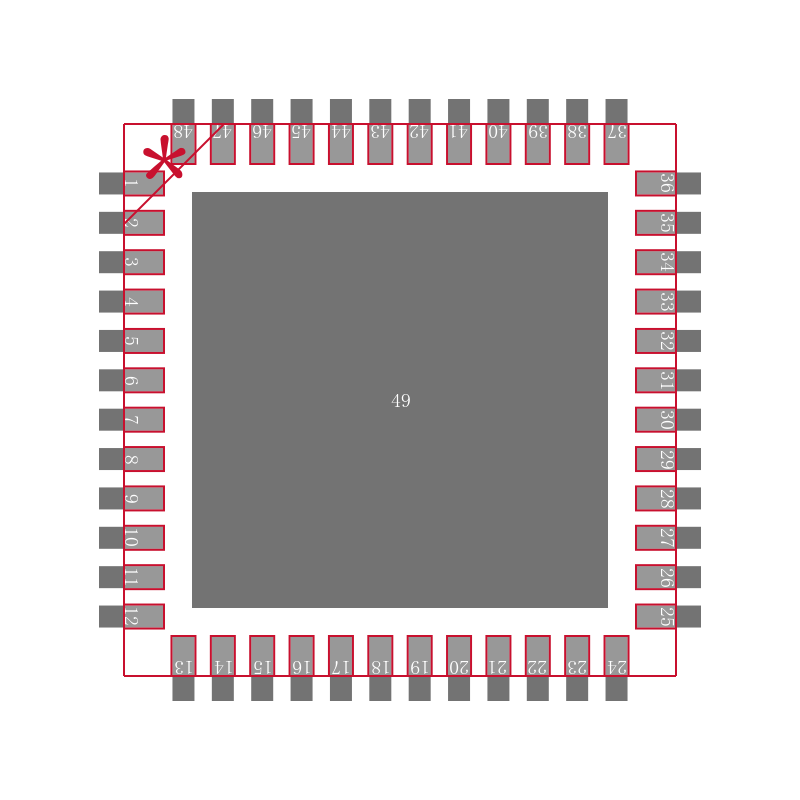

ADN2807ACP封装焊盘图
在线购买ADN2807ACP
型号: ADN2807ACP
制造商: ADI 亚德诺
描述:155/622 Mb / s的时钟和数据恢复IC,集成限幅放大器 155/622 Mb/s Clock and Data Recovery IC with Integrated Limiting Amp
替代型号ADN2807ACP
型号/品牌 代替类型 替代型号对比

ADN2807ACP

ADI 亚德诺

当前型号

当前型号

ADN2807ACPZ

亚德诺

功能相似

ADN2807ACP和ADN2807ACPZ的区别

ADN2807ACPZ-RL

亚德诺

功能相似

ADN2807ACP和ADN2807ACPZ-RL的区别
