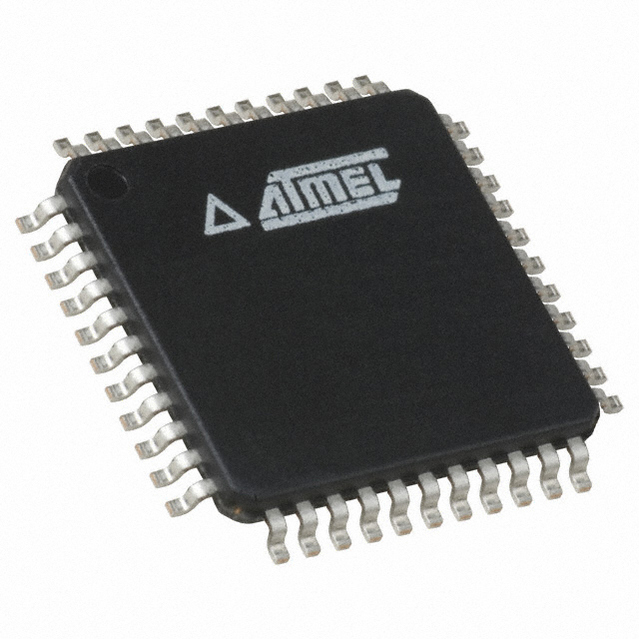

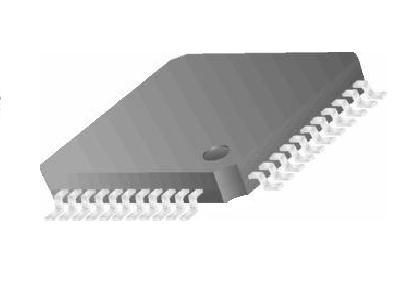

AT89S52-24AI

8位微控制器 -MCU 8K ISP FLASH 2.7 TO 5.5V - 24MHz

Description

The AT89S52 is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.

Features

• Compatible with MCS®-51Products

• 8K Bytes of In-System Programmable ISP Flash Memory

– Endurance: 10,000 Write/Erase Cycles

• 4.0V to 5.5V Operating Range

• Fully Static Operation: 0 Hz to 33 MHz

• Three-level Program Memory Lock

• 256 x 8-bit Internal RAM

• 32 Programmable I/O Lines

• Three 16-bit Timer/Counters

• Eight Interrupt Sources

• Full Duplex UART Serial Channel

• Low-power Idle and Power-down Modes

• Interrupt Recovery from Power-down Mode

• Watchdog Timer

• Dual Data Pointer

• Power-off Flag

• Fast Programming Time

• Flexible ISP Programming Byte and Page Mode

• Green Pb/Halide-free Packaging Option
