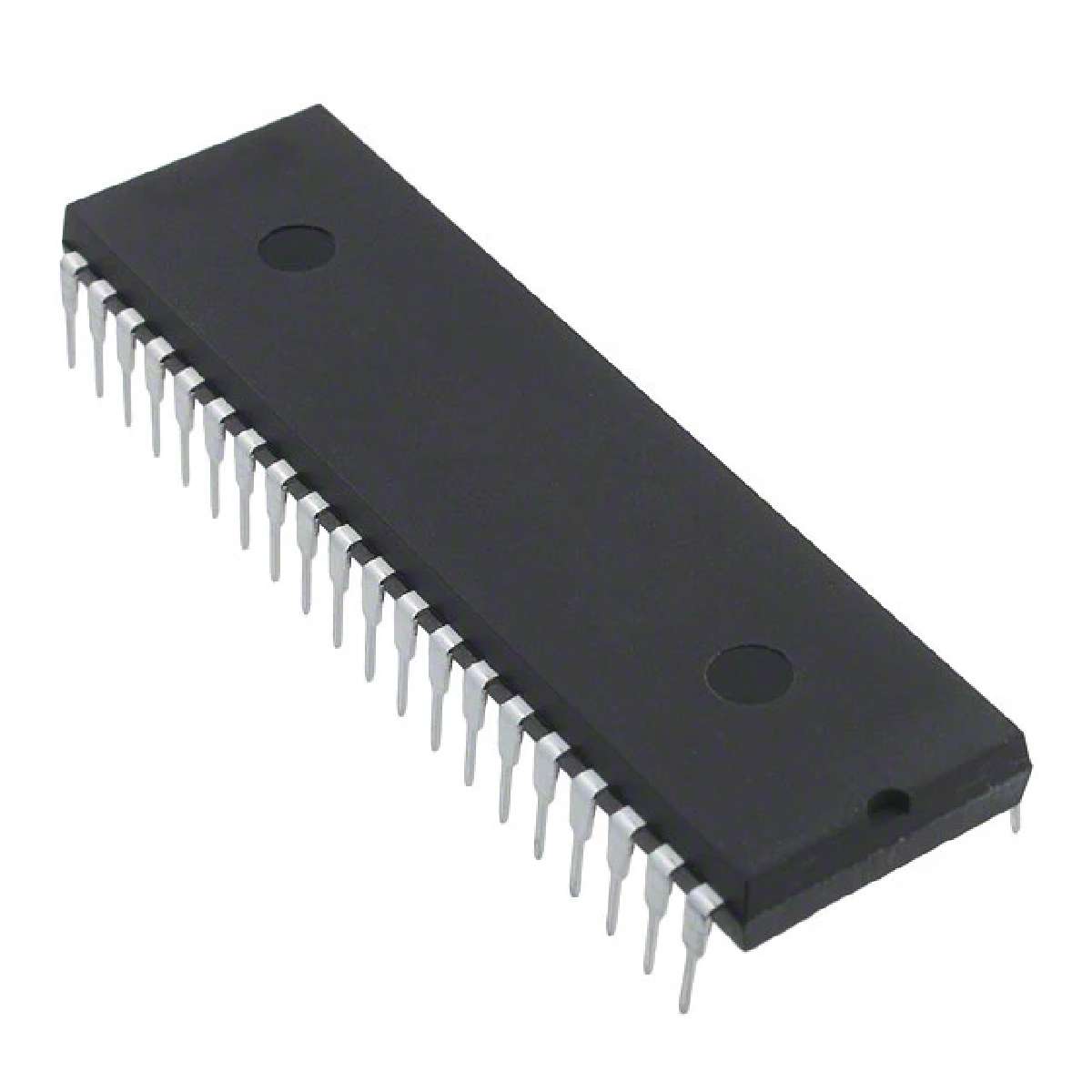

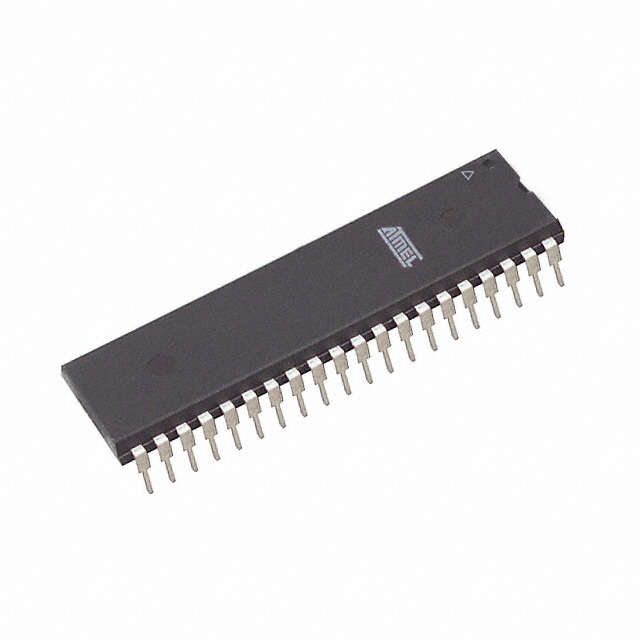

AT89C51RC-24PI

8位微控制器 -MCU 32K FLASH 4.0 TO 5.5V - 24MHZ

Description

The AT89C51RC is a low-power, high-performance CMOS 8-bit microcontroller with 32K bytes of Flash programmable read-only memory and 512 bytes of RAM. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be user programmed by a conventional nonvolatile memory programmer.

Features

• Compatible with MCS

®

-51 Products

• 32K Bytes of Reprogrammable Flash Memory

• Endurance: 1000 Write/Erase Cycles

• 4V to 5.5V Operating Range

• Fully Static Operation: 0 Hz to 33 MHz

• Three-level Program Memory Lock

• 512 x 8-bit Internal RAM

• 32 Programmable I/O Lines

• Three 16-bit Timer/Counters

• Eight Interrupt Sources

• Programmable Serial Channel

• Low-power Idle and Power-down Modes

• Interrupt Recovery from Power-down Mode

• Hardware Watchdog Timer

• Dual Data Pointer

• Power-off Flag

• Green Pb/Halide-free Packaging Option
