ACS108-8SN-TR

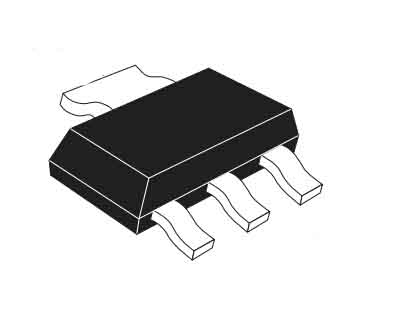

Thyristor AC Switch 800V 13.7A 4Pin3+Tab SOT-223 T/R

Description

The ACS108 belongs to the AC switch range built with A. S. D.® technology. This high performance switch can control a load of up to 0.8 A. The ACS108 switch includes an overvoltage crowbar structure to absorb the inductive turn-off energy, and a gate level shifter driver to separate the digital controller from the main switch. It is triggered with a negative gate current flowing out of the gate pin.

Features

Enables equipment to meet IEC 61000-4-5 surge with overvoltage crowbar technology

High noise immunity against static dV/dt and IEC 61000-4-4 burst

Needs no external protection snubber or varistor

Reduces component count by up to 80% and Interfaces directly with the micro-controller

Common package tab connection supports connection of several alternating current switches on the same cooling pad

VCLgives headroom before clamping then crowbar action

Applications

Alternating current on/off static switching in appliances and industrial control systems

Driving low power high inductive or resistive loads like:

  – relay, valve, solenoid, dispenser,

  – pump, fan, low power motor, door lock

  –lamp
