AEV 系列 10 A 单刀单掷 12 VDC 插入式 汽车继电器

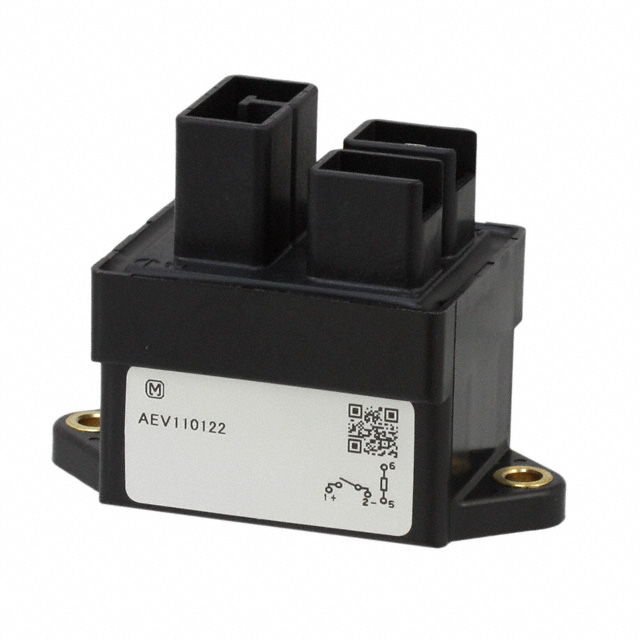

AEV Series 10 A SPST 12 VDC Plug-In Faston Automotive Relay
得捷:
RELAY AUTOMOTIVE SPST 10A 12V
立创商城:
12VDC 10A
艾睿:
Electromechanical Relay 12VDC 116.5Ohm 10A SPST-NO 66.8mm 37.9mm 49.7mm Flange Compact Relay Automotive
Allied Electronics:
AEV, EV, Capsule Contact Relay
Chip1Stop:
Electromechanical Relay SPST-NO 10A 12VDC 116.5Ohm Flange Mount
Newark:
# PANASONIC ELECTRIC WORKS AEV110122 Automotive Relay, SPST-NO, 12 VDC, 10 A, AEV Series, Panel, Screw
MASTER:
Relays 12VDC 116.5Ohm 10A SPST-NO66.8x37.9x49.7mm Flange Compact Relay Automotive
Electro Sonic:
Relays 12VDC 116.5Ohm 10A SPST-NO66.8x37.9x49.7mm Flange Compact Relay Automotive
触点类型 SPST-NO
触点额定电流 10 A
线圈电压 12 VDC
线圈电流 103 mA
线圈电阻 116.5 Ω
额定电流Max 10 A
线圈电压DC 12 V
线圈功率 1.24 W
工作温度Max 80 ℃
工作温度Min -40 ℃
安装方式 Quick Connect, Plug In, Chassis
封装 -
长度 66.8 mm
宽度 37.9 mm
高度 49.7 mm
封装 -
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
