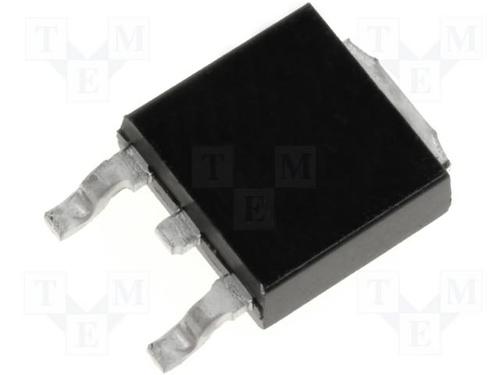

Trans MOSFET N-CH 75V 45A Automotive 3Pin2+Tab DPAK Tube
VBRDSS 75V
RDSon typ. 17.6mΩ
max. 22mΩ
ID Silicon Limited 45A
ID Package Limited 42A
Description
Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Features
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead-Free, RoHS Compliant
Automotive Qualified- .
