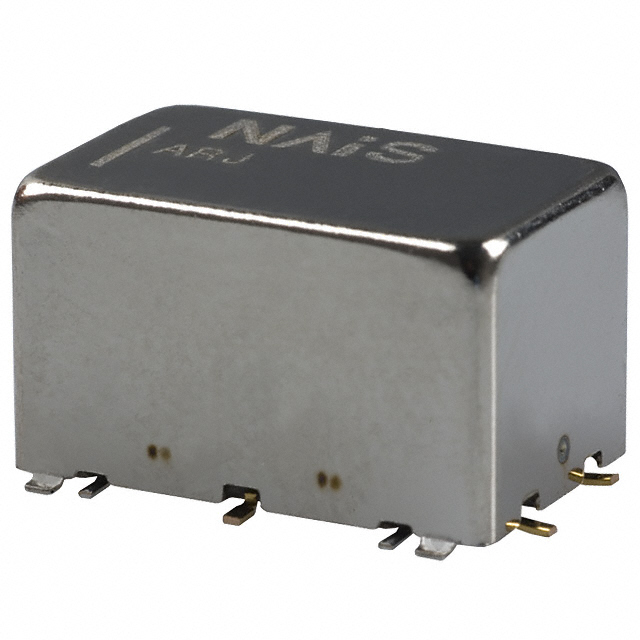

ARJ20A24

Electromechanical Relay 24VDC 2.88KΩ 0.3A DPDT15x10.4x8.2mm SMD High Frequency Relay

FEATURES

• Excellent high frequency characteris tics 50Ω, at 5GHz

   V.S.W.R.: Max. 1.25

   Insertion loss: Max. 0.5dB

   Isolation: Min. 35dB

                Between open contacts

               Min. 30dB

                Between contact sets

• Surface mount terminal

   Surface mount terminals are now standard so there is much less work in design ing PC boards.

• Small size

   Size: 14.00 L×9.00 W×8.20 H mm

.551 L×.354 W×.323 H inch

TYPICAL APPLICATIONS

Measurement equipment market

   Attenuator circuits, spectrum analyzer, oscilloscope, mobile equipment, tester

Mobile telecommunication market

   IMT2000, microwave communication

Medical instruments market
