ACS108-6SA-TR概述

AC开关系列瞬态电压保护交流开关( ACS ) AC switch family Transient voltage protected AC Switch ACS

Description

The ACS108 belongs to the AC switch range built with A. S. D.® technology. This high performance switch can control a load of up to 0.8 A. The ACS108 switch includes an overvoltage crowbar structure to absorb the inductive turn-off energy, and a gate level shifter driver to separate the digital controller from the main switch. It is triggered with a negative gate current flowing out of the gate pin.

Features

Enables equipment to meet IEC 61000-4-5 surge with overvoltage crowbar technology

High noise immunity against static dV/dt and IEC 61000-4-4 burst

Needs no external protection snubber or varistor

Reduces component count by up to 80% and Interfaces directly with the micro-controller

Common package tab connection supports connection of several alternating current switches on the same cooling pad

VCLgives headroom before clamping then crowbar action

Applications

Alternating current on/off static switching in appliances and industrial control systems

Driving low power high inductive or resistive loads like:

  – relay, valve, solenoid, dispenser,

  – pump, fan, low power motor, door lock

  –lamp

ACS108-6SA-TR中文资料参数规格
技术参数

电源电压DC 10.0V max

输出接口数 1

输出电压 ≤400 V

针脚数 3

保持电流 10 mA

保持电流Max 25 mA

工作温度Max 125 ℃

工作温度Min -30 ℃

封装参数

安装方式 Through Hole

引脚数 3

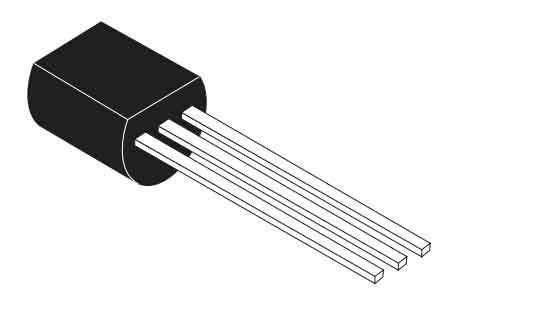

封装 TO-226-3

外形尺寸

封装 TO-226-3

物理参数

工作温度 -30℃ ~ 125℃ TJ

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买ACS108-6SA-TR
型号: ACS108-6SA-TR
描述:AC开关系列瞬态电压保护交流开关( ACS ) AC switch family Transient voltage protected AC Switch ACS
替代型号ACS108-6SA-TR
型号/品牌 代替类型 替代型号对比

ACS108-6SA-TR

ST Microelectronics 意法半导体

当前型号

当前型号

ACS108-5SA

意法半导体

完全替代

ACS108-6SA-TR和ACS108-5SA的区别

ACS108-5SA-TR

意法半导体

完全替代

ACS108-6SA-TR和ACS108-5SA-TR的区别

ACS108-6SA

意法半导体

类似代替

ACS108-6SA-TR和ACS108-6SA的区别
