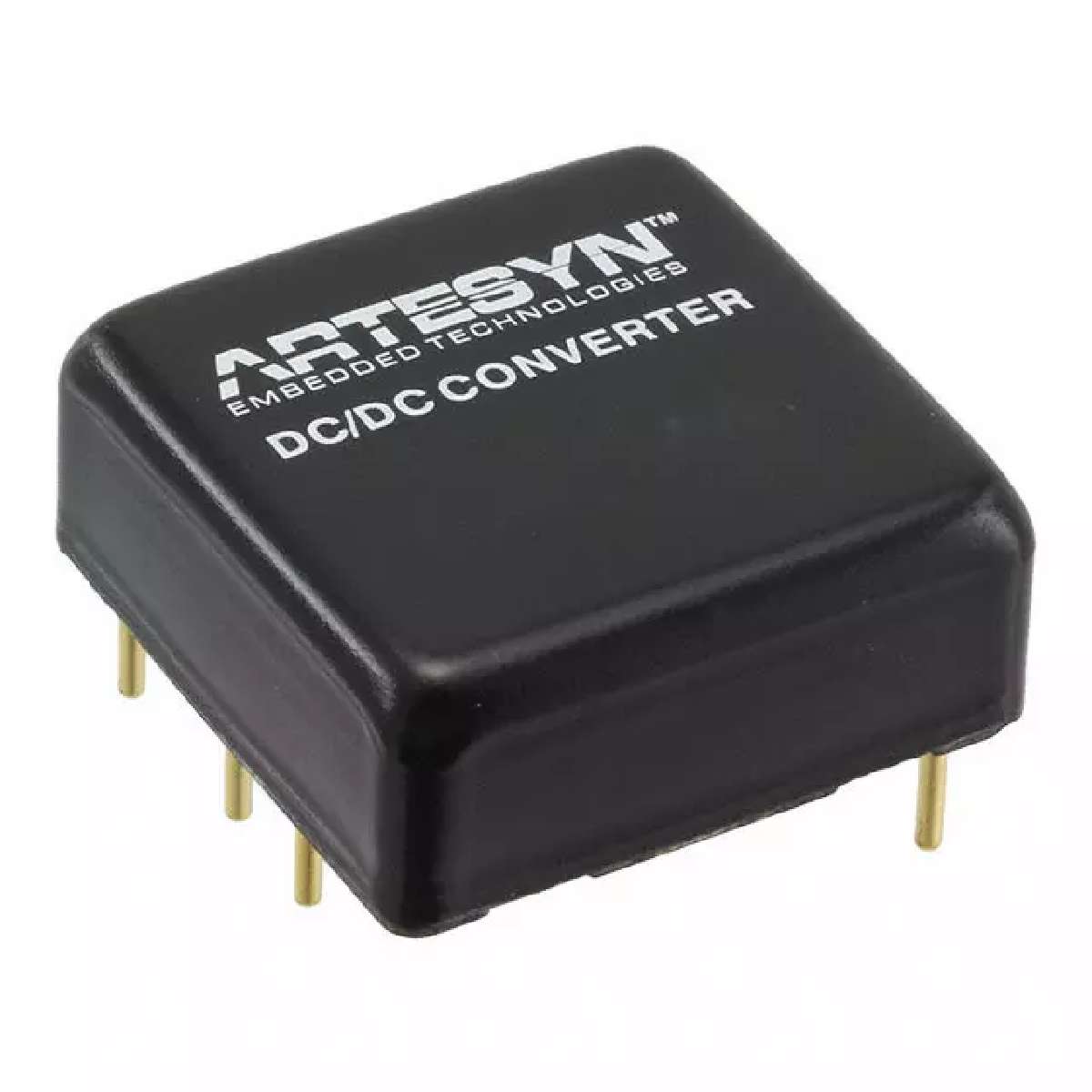

AXA04A36-L

ARTESYN EMBEDDED TECHNOLOGIES  AXA04A36-L  直流/直流转换器 隔离式板载, 金属机壳, DIP, 固定、可调节, 通孔安装, 20 W, 5 V, 4 A

The is a high performance DC-DC Converter Module setting a new standard concerning power density. It provides ultra-wide 4:1 input voltage range and tight output voltage regulation. It also provides 18 to 75VDC input voltage, 5V output voltage and 4A maximum load. State-of the-art circuit topology provides a very high efficiency up to 89% which allows an operating temperature range of -40 to 85°C. Further features include remote ON/OFF, trimmable output voltage as well as overload protection and overtemperature protection.

.

Output voltage adjustable

.

Shielded metal case with isolated base plate

.

1500VDC I/O isolation voltage
