ANT1-M24LR16E概述

STMICROELECTRONICS  ANT1-M24LR16E  电路板, 天线参考, M24LR16E-R

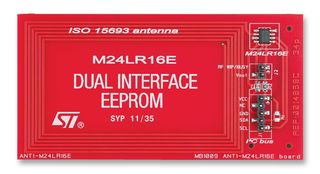

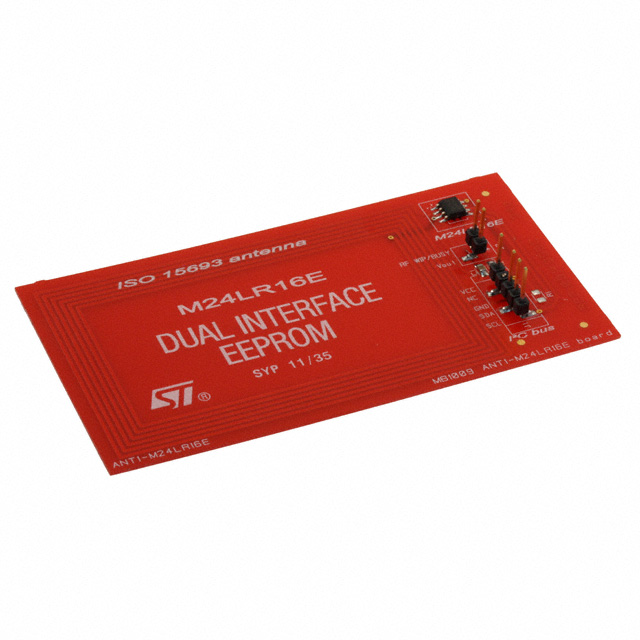

antenna reference board is a ready to use PCB that includes an M24LR16E-R dual interface EEPROM IC connected to a etched RF antenna on one side, and to an I2C bus on the other side. The M24LR16E-R is organized as 2048 × 8bits in the I2C mode and as 512 × 32 bits in the ISO 15693 and ISO 18000-3 mode 1 RF mode. It can be operated from a VCC power supply and is also a contactless memory powered by the received carrier electromagnetic wave. Both interfaces are widely used industry standards. The design principle of the M24LR16E-R antenna is very simple, the external antenna inductance that needs to be designed on board the PCB should match the M24LR16E-R internal tuning capacitance in order to create a circuit resonating at 13.56MHz. Board allows system designers to evaluate the M24LR16E-R performance and capabilities, and to get started with their design.

.
Two wire I2C serial interface supports 400KHz protocol
.
45mm x 75mm 13.56MHz inductive antenna etched on the PCB
.
Energy harvesting output with a 10nF capacitance filtering circuit
.
RF WIP/BUSY output with 20kohm pull up resistor, to indicate that an RF operation is ongoing
.
Single password protection in I2C mode
.
Multiple password protection in RF mode
.
Enhanced ESD/latch up protection
.
64bit unique identifier
.
More than 1 million write cycles
.
More than 40 year data retention

To demonstrate the energy harvesting function, the ANT1-M24LR16E can be used in conjunction with DEMO-CR95HF-A demonstration board. Sold separately.

ANT1-M24LR16E中文资料参数规格
技术参数

频率 13.56 MHz

其他

产品生命周期 Active

包装方式 Bulk

制造应用 RF Communications, 射频通信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买ANT1-M24LR16E
型号: ANT1-M24LR16E
制造商: ST Microelectronics 意法半导体
描述:STMICROELECTRONICS  ANT1-M24LR16E  电路板, 天线参考, M24LR16E-R
