ADS1198ECGFE-PDK概述

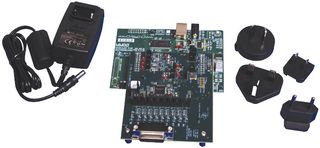

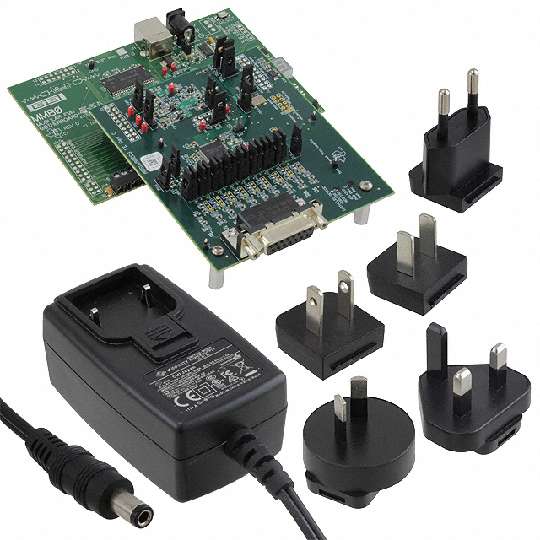

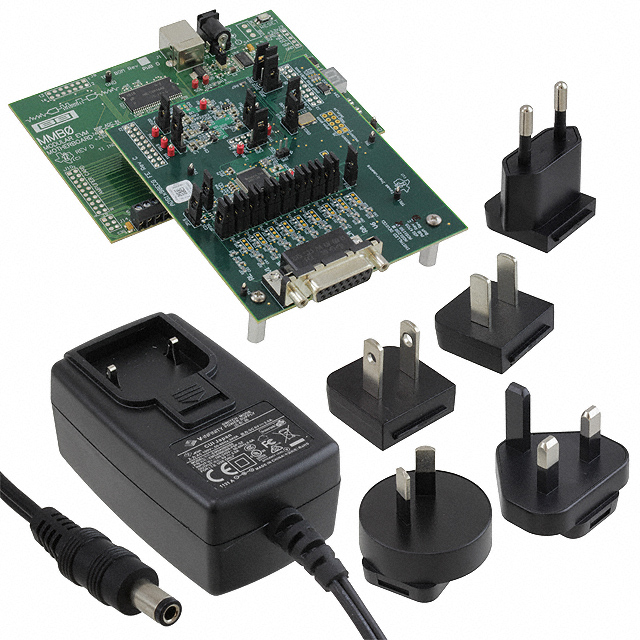

TEXAS INSTRUMENTS ADS1198ECGFE-PDK 性能演示套件, 前端 用于ADS1198

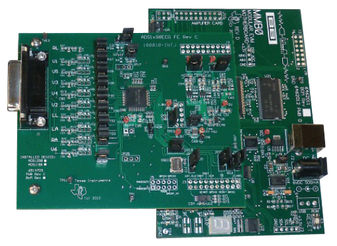

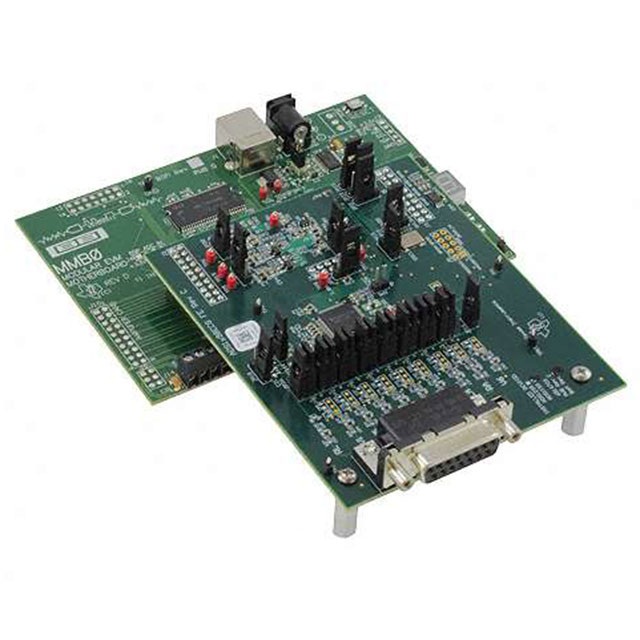

The ADS1198ECG FE is a reference design for the ADS1198, a simultaneous sampling, 16-bit, delta-sigma ΔΣ analog-to-digital converter ADC with a built-in programmable gain amplifier PGA, internal reference, and an onboard oscillator. The ADS1198 incorporates all of the features that are commonly required in medical electrocardiogram ECG and electroencephalogram EEG applications. The ADS1198ECG FE can be used with a variety of patient simulators and allows the user to take advantage of the flexible input multiplexer which can be independently connected to the internally-generated signals for test, temperature, and lead-off detection.
