ATF-35143-TR2G

射频结栅场效应晶体管RF JFET晶体管 Transistor GaAs Low Noise

Description

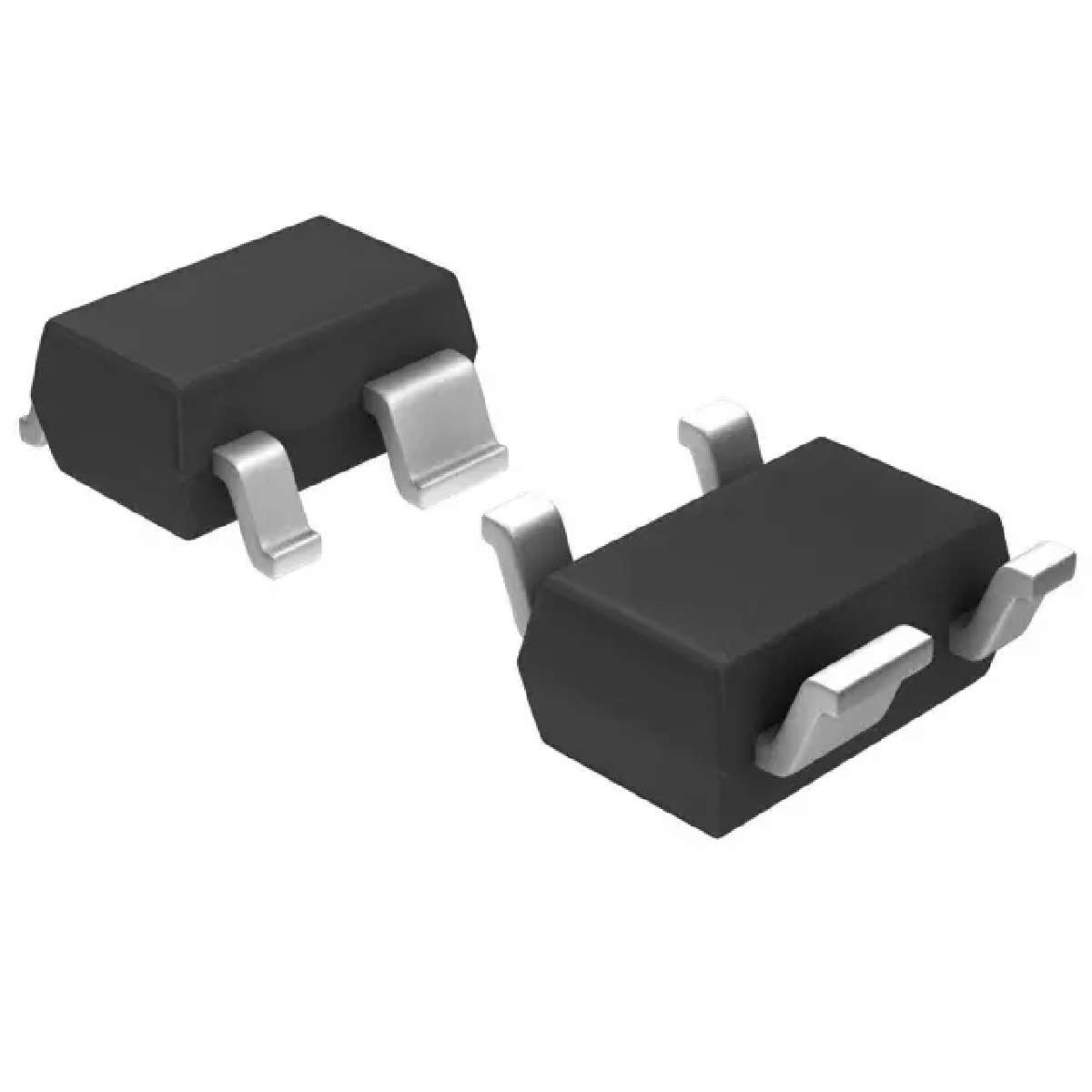

Avago’s ATF-35143 is a high dynamic range, low noise, PHEMT housed in a 4-lead SC-70 SOT-343 surface mount plastic package. Based on its featured performance, ATF-35143 is suitable for applications in cellular and PCS base stations, LEO systems, MMDS, and other systems requiring super low noise figure with good intercept in the 450 MHz to 10 GHz frequency range.

Features

Lead-free Option Available

Low Noise Figure

Excellent Uniformity in Product Specifications

Low Cost Surface Mount Small Plastic Package SOT-343 4 lead SC-70

Tape-and-Reel Packaging Option Available

Specifications

1.9 GHz; 2 V, 15 mA Typ.

0.4 dB Noise Figure

18 dB Associated Gain

11 dBm Output Power at 1 dB Gain Compression

21 dBm Output 3rd Order Intercept

Applications

Low Noise Amplifier for Cellular/PCS Handsets

LNA for WLAN, WLL/RLL, LEO, and MMDS Applications

General Purpose Discrete PHEMT for Other Ultra Low Noise Applications
