BROADCOM LIMITED ACPL-217-56BE Transistor Output Optocoupler, Half Pitch, 1Channel, SOIC, 4Pins, 50mA, 3kV, 130%
Description

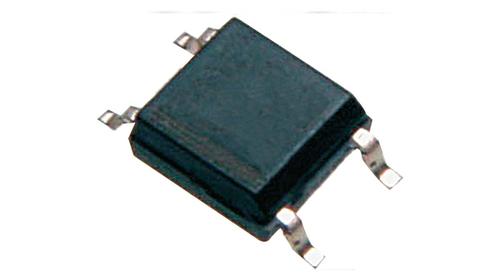

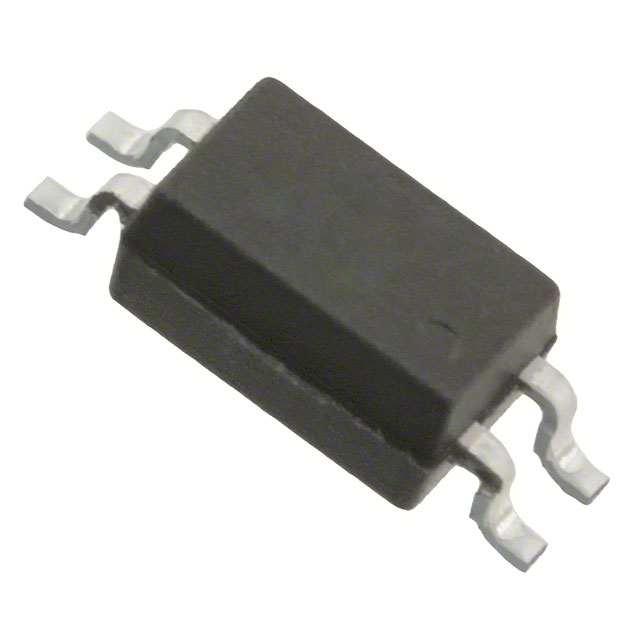

The ACPL-217 is a DC-input single channel half-pitch phototransistor optocoupler which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SO package. The input-output isolation voltage is rated at 3000 Vrms. Response time, tr, is 2μs typically, while minimum CTR is 50% at input current of 5 mA
Features
• Current transfer ratio CTR: 50% min at IF = 5mA, VCC = 5V
• High input-output isolation voltage VISO = 3,000VRMS
• Non-saturated Response time tr: 2μs typ at VCC = 10V, IC = 2mA, RL= 100Ω
• SO package
• CMR 10kV/μs typical
• Safety and regulatory approvals
\- cUL
\- IEC/EN/DIN EN 60747-5-2
• Options available:
– CTR Ranks 0, A, B, C & D
Applications
• I/O Interface for Programmable controllers, computers.
• Sequence controllers
• System appliances, measuring instruments
• Signal transmission between circuits of different potentials and impedances.
