ACPL-217-560E

1Channel TRANSISTOR OUTPUT OPTOCOUPLER, ROHS COMPLIANT, SOP-4

Description

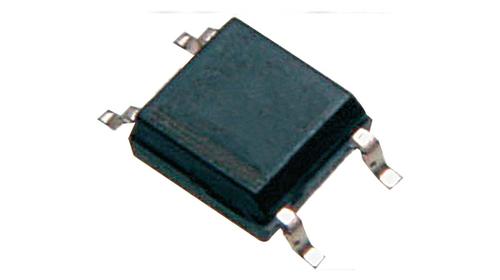

The ACPL-217 is a DC-input single channel half-pitch phototransistor optocoupler which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SO package. The input-output isolation voltage is rated at 3000 Vrms. Response time, tr, is 2μs typically, while minimum CTR is 50% at input current of 5 mA

Features

• Current transfer ratio CTR: 50% min at IF = 5mA, VCC = 5V

• High input-output isolation voltage VISO = 3,000VRMS

• Non-saturated Response time tr: 2μs typ at VCC = 10V, IC = 2mA, RL= 100Ω

• SO package

• CMR 10kV/μs typical

• Safety and regulatory approvals

\- cUL

\- IEC/EN/DIN EN 60747-5-2

• Options available:

– CTR Ranks 0, A, B, C & D

Applications

• I/O Interface for Programmable controllers, computers.

• Sequence controllers

• System appliances, measuring instruments

• Signal transmission between circuits of different potentials and impedances.
