The ACPL-827-00CE is a 2Channel DC-input full-pitch Phototransistor Optocoupler which contains 2 LED optically coupled to 2 separate transistors. It is also available in wide-lead spacing option and lead bend SMD option with input-output isolation voltage at 5000Vrms. Response time is typically 4µs and minimum CTR is 50% at input current of 5mA.
Description

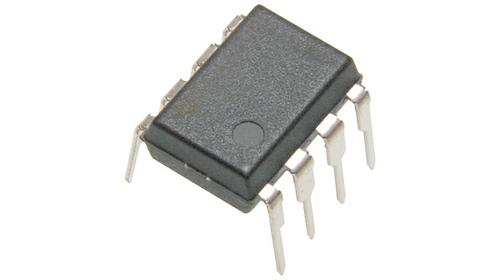

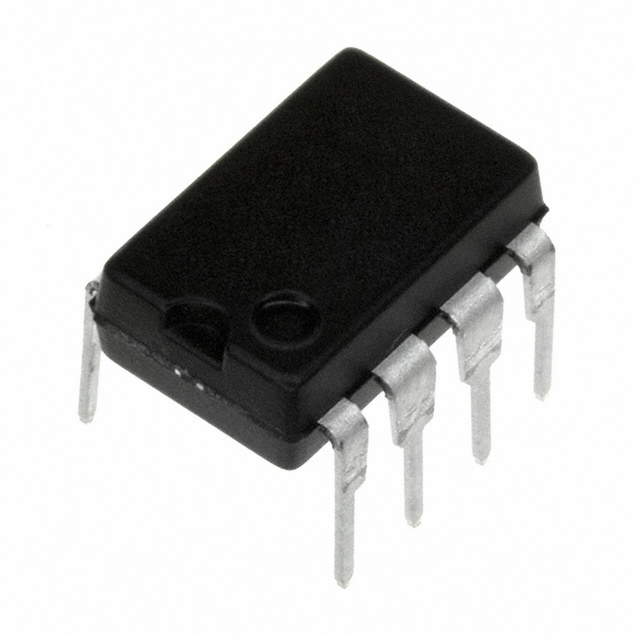

The ACPL-827 is a DC-input dual channel full-pitch phototransistor optocoupler which contains two light emitting diode optically coupled to two separate transistor. It is packaged in a 8-pin DIP package.
Likewise, the ACPL-847 is a DC-input quad channel full pitch phototransistor optocoupler which contains four light emitting diode optically coupled to four separate transistor. It is packaged in a 16-pin DIP package
Features
• Current transfer ratio CTR: min. 50% at IF= 5mA, VCE= 5V
• High input-output isolation voltage VISO= 5,000VRMS
• Response time tr: typ. 4µs at VCE= 2V, IC= 2mA, RL= 100W
• Compact dual-in-line package
输出电压 70 V
输出电流 30 mA
通道数 2
正向电压 1.2 V
输入电流 20 mA
耗散功率 200 mW
隔离电压 5000 Vrms
正向电流 50 mA
输入电流Min 50 mA
正向电压Max 1.4 V
正向电流Max 50 mA
下降时间 18 µs
工作温度Max 100 ℃
工作温度Min 30 ℃
耗散功率Max 200 mW
安装方式 Through Hole
引脚数 8
封装 PDIP-8
长度 9.68 mm
宽度 6.5 mm
高度 3.5 mm
封装 PDIP-8
工作温度 -30℃ ~ 100℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ACPL-827-00CE AVAGO Technologies 安华高科 | 当前型号 | 当前型号 |
