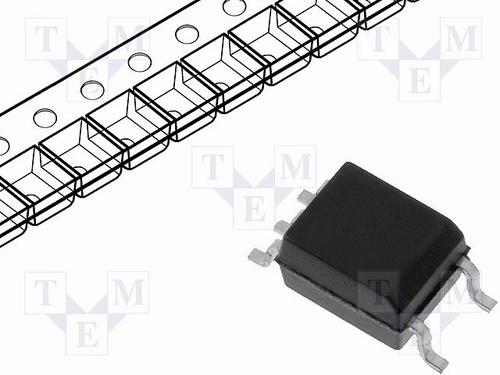

ACPL-W50L-000E

高速光耦合器 1MBd 15000V/us

Description

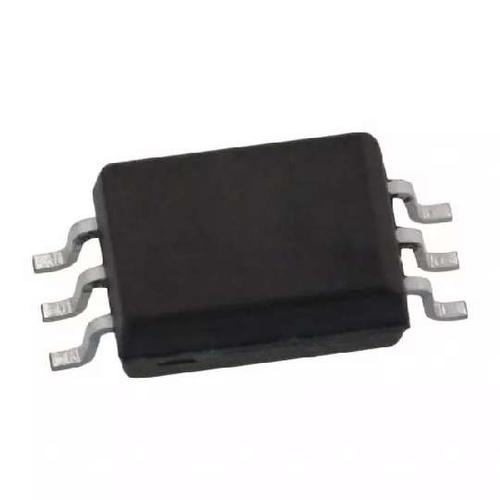

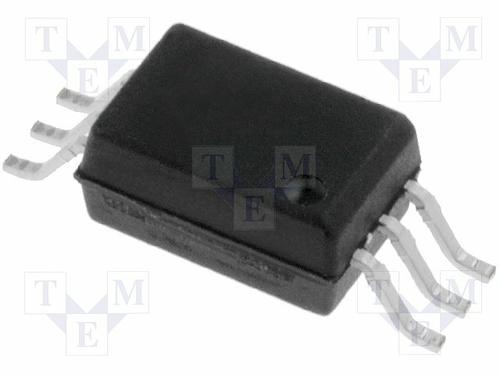

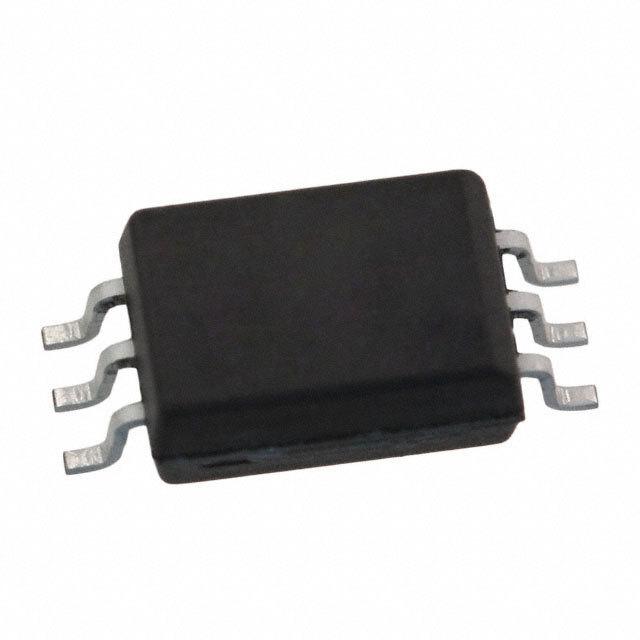

The ACPL-M50L single-channel in SO-5 footprint, ACPL-054L dual-channel in SO-8 footprint, ACPL-W50L single-channel in stretched SO-6 footprint and ACPL-K54L dual-channel in stretched SO-8 footprint are low power, low-input current, 1MBd digital optocouplers.

Features

Wide supply voltage Vcc: 2.7V to 24V

Low Drive Current: 3mA

Open-Collector Output

TTL compatible

Compact SO-5, SO-8, stretched SO-6 and stretched SO-8 package

15 kV/s High Common-Mode Rejection at VCM= 1500 V

Guaranteed performance from Temperature Range: -40°C to +105°C

Low Propagation Delay: 1s max at 5V

Worldwide Safety Approval: Pending except ACPL-M50L

– UL1577 recognized,

3750Vrms/1min for ACPL-M50L/054L,

5000Vrms/1min for ACPL-W50L/K54L,

– CSA Approval

–  IEC 60747-5-5, IEC/EN/DIN EN 60747-5-2

Applications

Communications Interface

Digital Signal Isolation

Micro-controller Interface

Feedback Elements in Switching Power Supplies

Digital isolation for A/D, D/A conversion Digital field
