ACPL-827-30CE

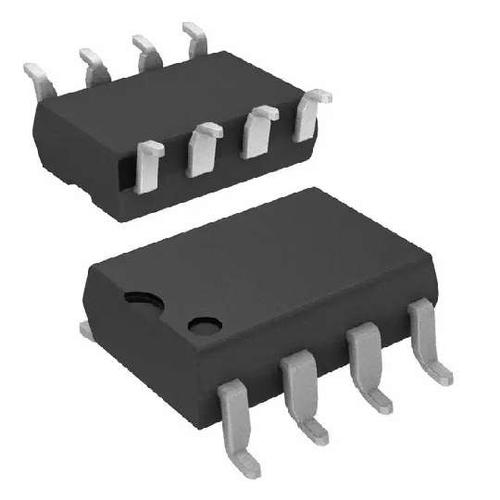

ACPL-827-30CE图片1
ACPL-827-30CE图片2
ACPL-827-30CE图片3
ACPL-827-30CE概述

The ACPL-827-30CE is a 2Channel DC-input full-pitch Phototransistor Optocoupler which contains 2 LED optically coupled to 2 separate transistors. It is also available in wide-lead spacing option and lead bend SMD option with input-output isolation voltage at 5000Vrms. Response time is typically 4µs and minimum CTR is 50% at input current of 5mA.

Description

The  ACPL-827  is  a  DC-input  dual  channel  full-pitch phototransistor  optocoupler  which  contains  two  light emitting  diode  optically  coupled  to  two  separate transistor. It is packaged in a 8-pin DIP package.

Likewise, the ACPL-847 is a DC-input quad channel full pitch  phototransistor  optocoupler  which  contains  four light  emitting  diode  optically  coupled  to  four  separate transistor. It is packaged in a 16-pin DIP package

Features

•  Current transfer ratio CTR: min. 50% at IF= 5mA, VCE= 5V

•  High input-output isolation voltage  VISO= 5,000VRMS

•  Response time tr: typ. 4µs at VCE= 2V, IC= 2mA, RL= 100W

•  Compact dual-in-line package

ACPL-827-30CE中文资料参数规格
技术参数

输出电压 70.0 V

输出电流 30.0 mA

正向电压 1.2 V

输入电流 20.0 mA

耗散功率 0.2 W

上升时间 18000 ns

隔离电压 5000 Vrms

正向电流 50 mA

输入电流Min 50 mA

击穿电压 6 V

正向电压Max 1.4 V

正向电流Max 50 mA

下降时间 18000 ns

耗散功率Max 200 mW

封装参数

安装方式 Surface Mount

引脚数 8

封装 PDIP-8

外形尺寸

封装 PDIP-8

物理参数

工作温度 -30℃ ~ 100℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买ACPL-827-30CE
型号: ACPL-827-30CE
制造商: AVAGO Technologies 安华高科
描述:The ACPL-827-30CE is a 2Channel DC-input full-pitch Phototransistor Optocoupler which contains 2 LED optically coupled to 2 separate transistors. It is also available in wide-lead spacing option and lead bend SMD option with input-output isolation voltage at 5000Vrms. Response time is typically 4µs and minimum CTR is 50% at input current of 5mA.
