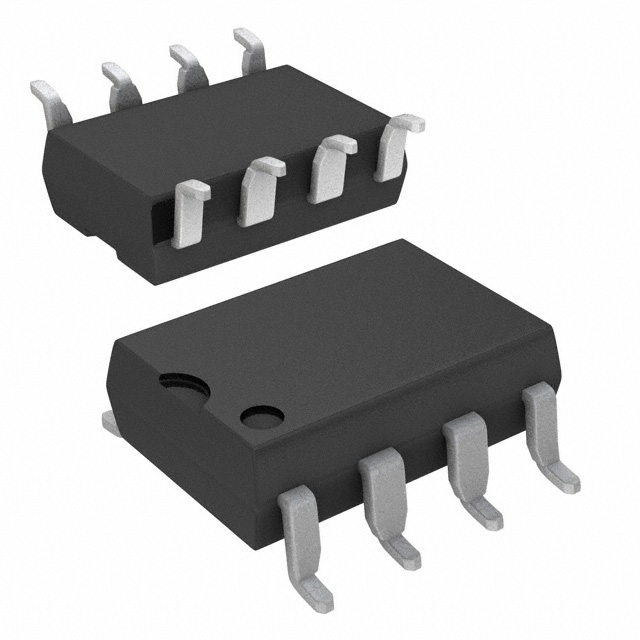

ACPL-827-50BE

晶体管输出光电耦合器 5000 Vrms 50% CTR

Description

The  ACPL-827  is  a  DC-input  dual  channel  full-pitch phototransistor  optocoupler  which  contains  two  light emitting  diode  optically  coupled  to  two  separate transistor. It is packaged in a 8-pin DIP package.

Likewise, the ACPL-847 is a DC-input quad channel full pitch  phototransistor  optocoupler  which  contains  four light  emitting  diode  optically  coupled  to  four  separate transistor. It is packaged in a 16-pin DIP package

Features

•  Current transfer ratio CTR: min. 50% at IF= 5mA, VCE= 5V

•  High input-output isolation voltage  VISO= 5,000VRMS

•  Response time tr: typ. 4µs at VCE= 2V, IC= 2mA, RL= 100W

•  Compact dual-in-line package
