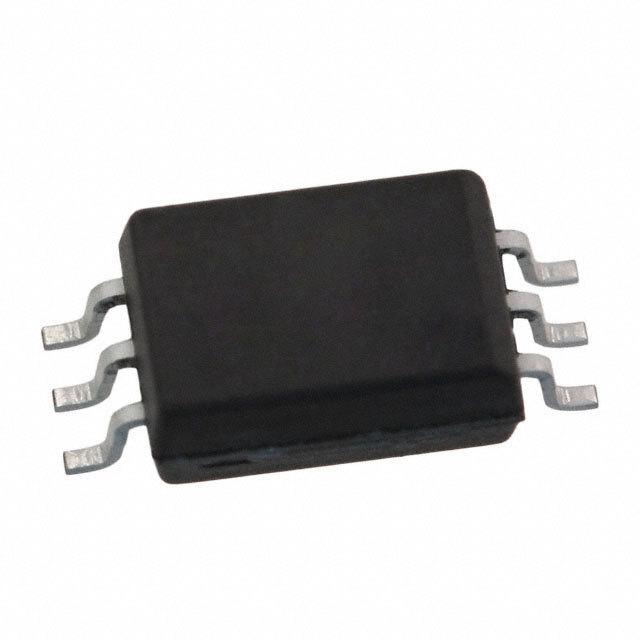

ACPL-W61L-560E

OPTOISO 5kV PUSH PULL 6SO

Description

The Avago ultra low power ACPL-x6xL digital optocouplers combine an AlGaAs light emitting diode and an integrated high gain photodetector. The optocoupler consumes extremely low power, at maximum 1.3mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA most microprocessors can directly drive the LED.

Features

•  Ultra-low IDDcurrent: 1.3 mA/channel maximum

•  Low input current: 1.6 mA

•  Built-in slew-rate controlled outputs

•  20 kV/μs minimum Common Mode Rejection CMR at VCM= 1000 V

•  High speed: 10 MBd minimum

•  Guaranteed AC and DC performance over wide temperature: –40°C to +105°C

•  Wide package selection: SO-5, SO-8, stretched SO-6 and stretched SO-8
