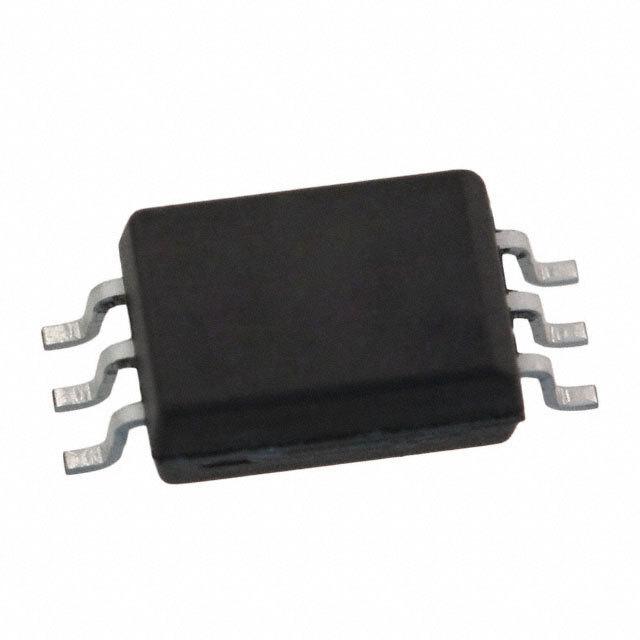

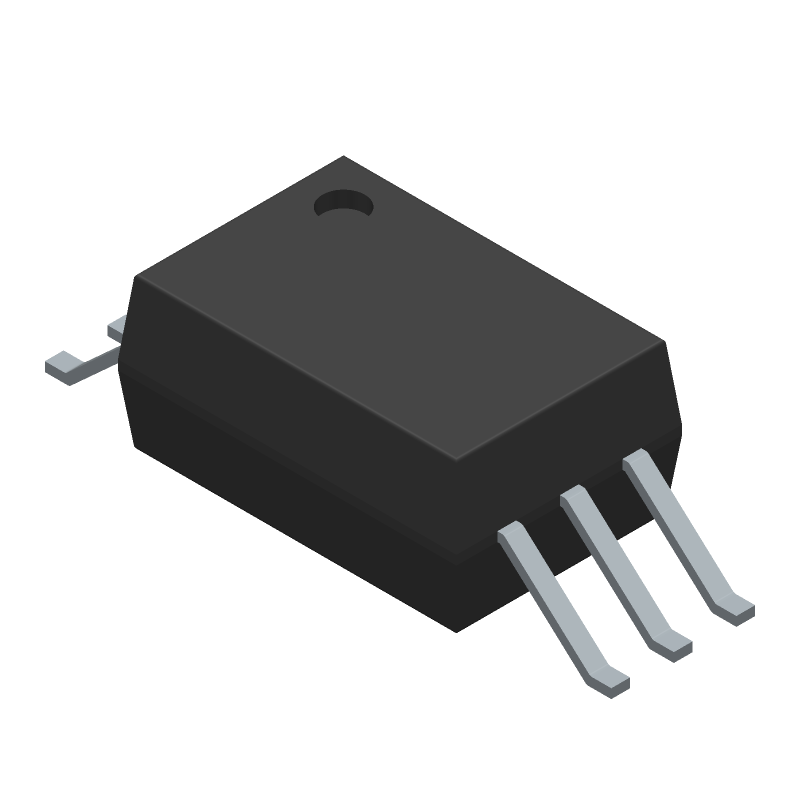

1Channel LOGIC OUTPUT OPTOCOUPLER, 10Mbps, ROHS COMPLIANT, SOP-6
Description
The Avago ultra low power ACPL-x6xL digital optocouplers combine an AlGaAs light emitting diode LED and an integrated high gain photodetector. The optocoupler consumes extremely low power, at maximum 1.3mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA most microprocessors can directly drive the LED.
Features
• Ultra-low IDDcurrent: 1.3 mA/channel maximum
• Low input current: 1.6 mA
• Built-in slew-rate controlled outputs
• 20 kV/μs minimum Common Mode Rejection CMR at VCM= 1000 V
• High speed: 10 MBd minimum
• Guaranteed AC and DC performance over wide temperature: –40°C to +105°C
• Wide package selection: SO-5, SO-8, stretched SO-6 and stretched SO-8
输出电压 6.00 V
输出电流 10 mA
通道数 1
正向电压 1.3 V
输入电流 6.00 mA
耗散功率 20 mW
上升时间 12 ns
隔离电压 5000 Vrms
正向电流 2 mA
正向电压Max 1.7 V
正向电流Max 8 mA
下降时间 0.012 µs
工作温度Max 105 ℃
工作温度Min 40 ℃
耗散功率Max 20 mW
安装方式 Surface Mount
引脚数 6
封装 SO-6
长度 6.81 mm
宽度 4.48 mm
高度 3.18 mm
封装 SO-6
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ACPL-W61L-500E AVAGO Technologies 安华高科 | 当前型号 | 当前型号 |
ACPL-W61L-000E 博通 | 功能相似 | ACPL-W61L-500E和ACPL-W61L-000E的区别 |
ACPL-W61L-560E 博通 | 功能相似 | ACPL-W61L-500E和ACPL-W61L-560E的区别 |
