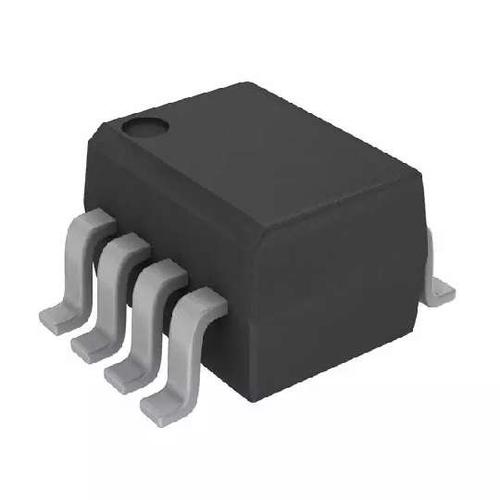

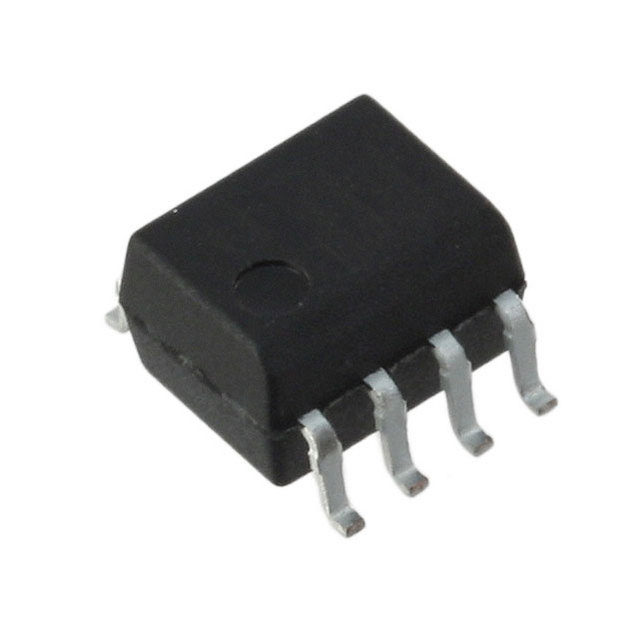

Transistor Output Optocoupler, Low Power, 2, 3.75kV, 93%, 20mA, SOIC, 8
Description
The ACPL-M50L single-channel in SO-5 footprint, ACPL-054L dual-channel in SO-8 footprint, ACPL-W50L single-channel in stretched SO-6 footprint and ACPL-K54L dual-channel in stretched SO-8 footprint are low power, low-input current, 1MBd digital optocouplers.
Features
Wide supply voltage Vcc: 2.7V to 24V
Low Drive Current: 3mA
Open-Collector Output
TTL compatible
Compact SO-5, SO-8, stretched SO-6 and stretched SO-8 package
15 kV/s High Common-Mode Rejection at VCM= 1500 V
Guaranteed performance from Temperature Range: -40°C to +105°C
Low Propagation Delay: 1s max at 5V
Worldwide Safety Approval: Pending except ACPL-M50L
– UL1577 recognized,
3750Vrms/1min for ACPL-M50L/054L,
5000Vrms/1min for ACPL-W50L/K54L,
– CSA Approval
– IEC 60747-5-5, IEC/EN/DIN EN 60747-5-2
Applications
Communications Interface
Digital Signal Isolation
Micro-controller Interface
Feedback Elements in Switching Power Supplies
Digital isolation for A/D, D/A conversion Digital field
