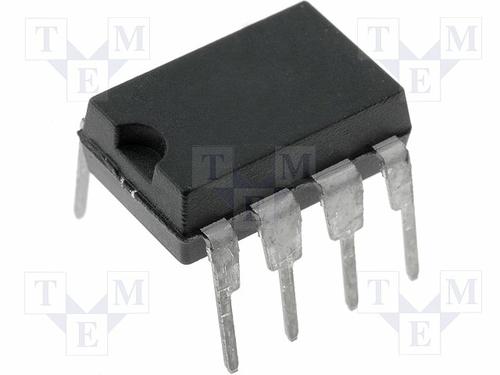

ACPL-312T-000E图片1

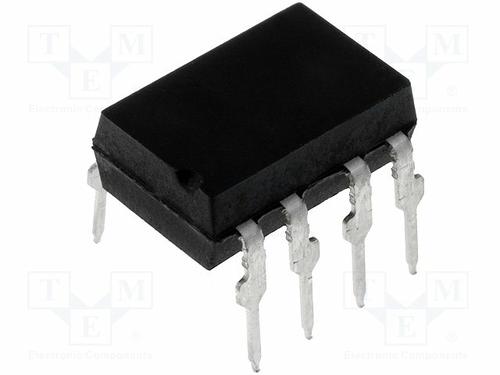

ACPL-312T-000E图片2
ACPL-312T-000E图片3
ACPL-312T-000E图片4
ACPL-312T-000E图片5
ACPL-312T-000E图片6
ACPL-312T-000E图片7
ACPL-312T-000E图片8
ACPL-312T-000E概述

逻辑输出光电耦合器 Gate Drive Opto

Description

The  ACPL-312T  device  contains  an  AlGaAs  LED. The  LED is optically coupled to an integrated circuit with a power output stage. This automotive optocoupler is ideally suited for driving power IGBTs and MOSFETs used in automotive  motor  control  inverter  and  DC-DC  converters  applications.

Features

•  2.5 A maximum peak output current

•  2.0 A minimum peak output current

•  25 kV/μs minimum Common Mode Rejection CMR at VCM= 1500 V

•  0.5  V  maximum  low  level  output  voltage  VOL  - Eliminates need for negative gate drive

•  ICC= 5 mA maximum supply current

•  Under  Voltage  Lock-Out  protection  UVLO  with hysteresis

•  Wide operating VCCrange: 15 to 30 Volts

•  500 ns maximum switching speeds

•  Automotive temperature range:

  -  -40°C to 125°C

•  Safety Approval Pending:

  -  UL Recognized 3750 Vrms for 1 min. 5kV for option x20E available upon request.

  -  CSA

  -  IEC/EN/DIN EN 60747-5-2

Applications

•  Automotive Motor/DC-DC Converter

•  Automotive Isolated IGBT/MOSFET Gate Drive

•  AC and Brushless DC Motor Drives

•  Industrial Inverters Systems

•  Switch mode power supplies

ACPL-312T-000E中文资料参数规格
技术参数

输出电压 30.0 V, 30.0 V max

输出电流 2.00 A

通道数 1

输入电流 16.0 mA

耗散功率 400 mW

上升时间 500 ns

隔离电压 3.75 kV

下降时间 100 ns

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Through Hole

引脚数 8

封装 PDIP-8

外形尺寸

封装 PDIP-8

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买ACPL-312T-000E
型号: ACPL-312T-000E
制造商: AVAGO Technologies 安华高科
描述:逻辑输出光电耦合器 Gate Drive Opto
替代型号ACPL-312T-000E
型号/品牌 代替类型 替代型号对比

ACPL-312T-000E

AVAGO Technologies 安华高科

当前型号

当前型号

ACPL-312U-000E

博通

功能相似

ACPL-312T-000E和ACPL-312U-000E的区别
