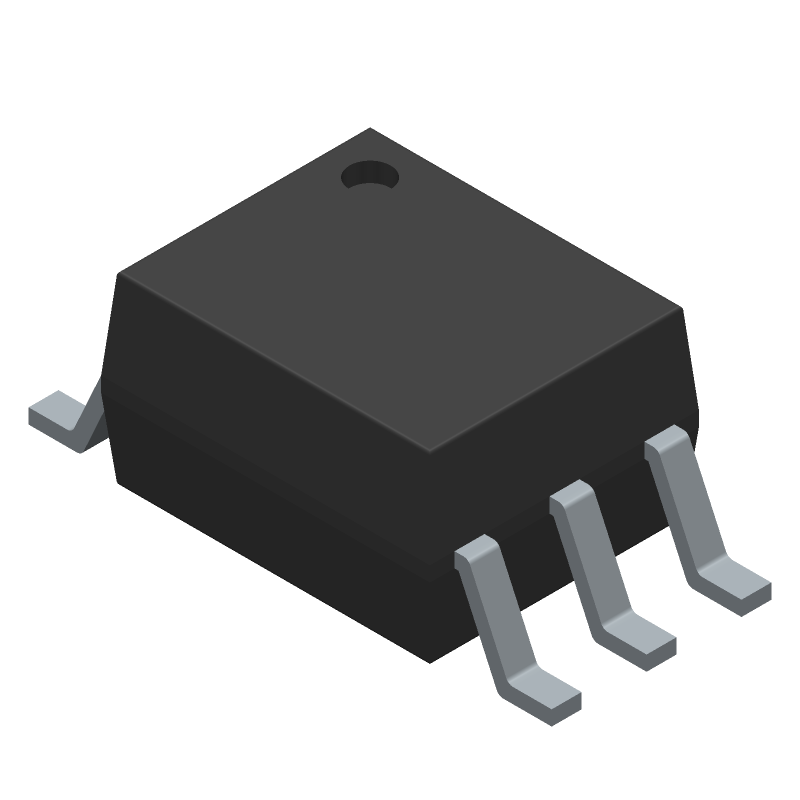

1Channel LOGIC OUTPUT OPTOCOUPLER, 1Mbps, ROHS COMPLIANT, MO-155, SMT, SOP-5
Description
The ACPL-M43T is a single channel, high temperature, high CMR, high speed digital optocoupler in a five lead miniature footprint specifically used in the automotive applications. The SO-5 JEDEC registered MO-155 package outline does not require “through holes” in a PCB. This package occupies approximately one-fourth the footprint area of the standard dual-in-line package. The lead profile is designed to be compatible with standard surface mount processes.
Features
• High Temperature and Reliability IPM Driver for Automotive Application.
• 30 kV/µs High Common-Mode Rejection at VCM= 1500 V typ
• Compact, Auto-Insertable SO5 Packages
• Wide Temperature Range: -40°C ~ 125°C
• High Speed: 1MBd Typ
• Low LED Drive Current: 10mA typ
• Low Propagation Delay: 300ns typ
输出电压 20.0 V
输出电流 8 mA
通道数 1
正向电压 1.5 V
输入电流 10.0 mA
耗散功率 100 mW
隔离电压 3750 Vrms
正向电流 20 mA
输入电流Min 20 mA
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 5
封装 SOIC-5
长度 3.6 mm
宽度 4.4 mm
高度 2.5 mm
封装 SOIC-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
