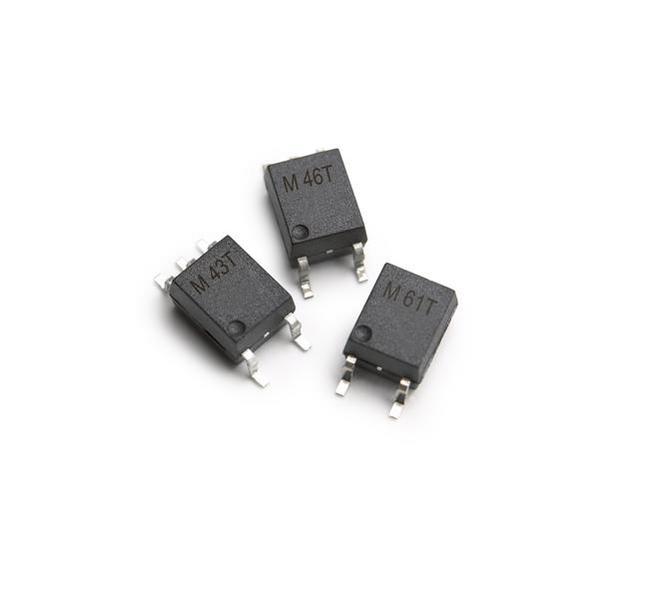

Optocoupler DC-IN 1CH Transistor With Base DC-OUT 5Pin SOIC Tube
Description
The is a single channel, high temperature, high CMR, high speed digital optocoupler in a five lead miniature footprint specifically used in the automotive applications. The SO-5 JEDEC registered MO-155 package outline does not require “through holes” in a PCB. This package occupies approximately one-fourth the footprint area of the standard dual-in-line package. The lead profile is designed to be compatible with standard surface mount processes.
Features
• High Temperature and Reliability IPM Driver for Automotive Application.
• 30 kV/µs High Common-Mode Rejection at VCM= 1500 V typ
• Compact, Auto-Insertable SO5 Packages
• Wide Temperature Range: -40°C ~ 125°C
• High Speed: 1MBd Typ
• Low LED Drive Current: 10mA typ
• Low Propagation Delay: 300ns typ
